Shop All Level Switches
Madison

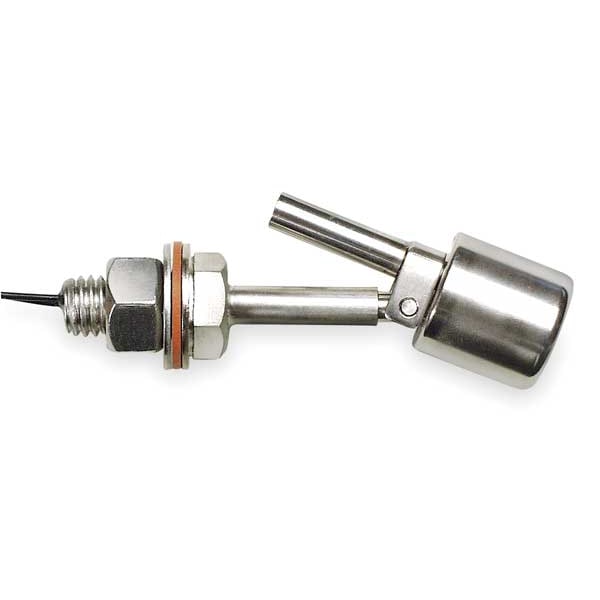

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi
Mfr # M5970
Zoro # G3163325
Free Shipping & Returns
$96.39
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 240VAC
- Max. Pressure 100 psi
- Switch Function Selectable
- Max. Voltage 240 V
- Contact Form SPST
Product Information
- Brand Madison
- MFR # M5970
- Zoro # G3163325
- UPC # 094703702750
- Country of Origin United States
- Category Level Switches
Dimensions
Float Dia. | 1.0 in |
Conduit Size | 1/2 in |
Stem Length | 3.19 in |
Overall Length | 4.12 in |
Tank Connection Size | 1/2 in - 13 UNC |
Width | 1.06 in |
Float Length | 1 in |
Overall Width | 1.06 in |
Stem Thread Size | 1/2-13 UNC |
Float Diameter | 1 in |
Description
Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in - 13 UNC, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 392 Degrees F Max., Overall Length 4.12 in, Float Material 316 Stainless Steel, Float Length 1 in, Float Dia. 1.0 in, Stem Material 316 Stainless Steel, Stem Length 3.19 in, Height -, Width 1.06 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Stainless Steel, Conduit Size 1/2 in
