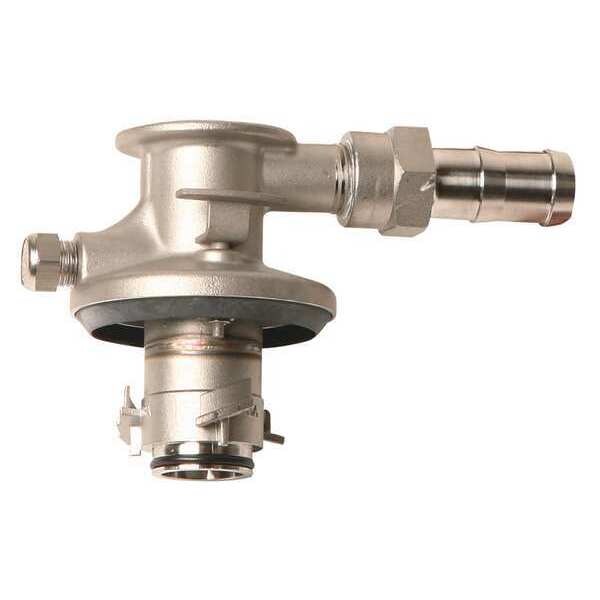

Coupler, 2-51/64 in. Dia., 3-45/64 in. W

Mfr # 195206A
Zoro # G4022299

$157.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With Mfr. No. 33101, 33102, 33115-S2MG, 33115-S2AG, 33115-S1MG, 33115-S1AG, 51009C-S9MG, 51009C-S9AG, 970027-02MG, 970027-02AG, 970027-06MG, 970027-06AG
DEF Compatible Yes
Adapter Material 316 Stainless Steel
Height 2-45/64"
Wetted Materials EPDM, Stainless Steel

See all product information

Product Information

Brand Liquidynamics
MFR # 195206A
Zoro # G4022299
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Height	2-45/64"
Manufacturers Warranty Length	30 day
Diameter	2-51/64"
Width	3-45/64"
Hose Inside Dia.	3/4 in
Threaded Connection Size	3/4 in
Tote Connection Size	1 7/8 in

Details

Item	Coupler
For Use With	Mfr. No. 33101, 33102, 33115-S2MG, 33115-S2AG, 33115-S1MG, 33115-S1AG, 51009C-S9MG, 51009C-S9AG, 970027-02MG, 970027-02AG, 970027-06MG, 970027-06AG
DEF Compatible	Yes
Adapter Material	316 Stainless Steel
Wetted Materials	EPDM, Stainless Steel
Max. Liquid Temp.	86 Degrees F
Agency Compliance	ISO222241-3
Seal Material	EPDM
For Media Type	Acetic Acid, Citric Acid, Ethanol, Isopropanol, Antifreeze, Ethylene Glycol, Glycerin, Sodium Bicarbonate, Formaldehyde, Ammonium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Sodium Bisulfite, DEF
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Citric Acid 50%, Ethyl (Ethanol), Isopropyl (Isopropanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Sodium Bicarbonate (10%), Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfite, DEF
Outlet Angle	0 Degrees
Body Material	Stainless Steel
Max. Operating Pressure	100 psi
Not Recommended Chemicals	Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Methyl (Methanol), Calcium Chloride, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Lacquer Thinners, Toluene, Xylene, Motor Oil, Methyl Chloride, Sodium Bisulfate, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Fertilizers, Fungicides, Herbicides, Lithium Grease, Naphtha, Paint, Paint Thinner, Pesticides, Turpentine, Windshield Washer Fluid
Diesel Exhaust Fluid Compatible	Yes
Threaded Connection Type	Hose Barb
Min. Fluid Temp.	17 Degrees F
Max. Fluid Temp.	150 Degrees F
Grease	NT
Gear Lube	NT

Description

Coupler, Body Material Stainless Steel, Seal Material EPDM, Tote Connection Size 1 7/8 in, Threaded Connection Size 3/4 in, Threaded Connection Type Hose Barb, Hose Inside Dia. 3/4 in, Max. Fluid Temp. 150 Degrees F, Min. Fluid Temp. 17 Degrees F, Max. Operating Pressure 100 psi, Outlet Angle 0 Degrees , Diesel Exhaust Fluid Compatible Yes, Wetted Materials EPDM, Stainless Steel, Agency Compliance ISO222241-3
