Shop All Foot Switches
Linemaster

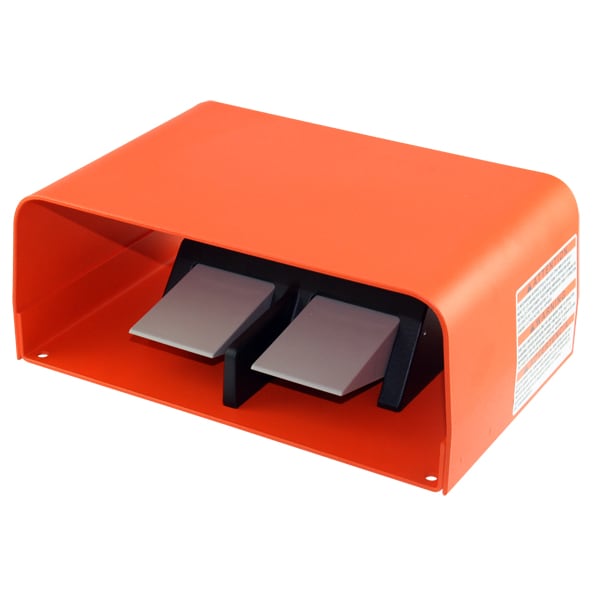

Classic IV - Guarded

original price: $362.22
5% off
new price: $340.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Actions Single Stage Momentary
  • Switch Type Electrical
  • Shields & Guards Full Twin Guard
  • Cable Entries 3/4"-14 NPT threaded entry
  • MATERIALS One Piece Cast Aluminum Housing Single Stage Momentary Contact Aluminum baseplate on unguarded models Single Pedal 1/2"-14 N.P.T. Threaded Conduit Opening is Standard Twin Pedal 3/4"-14 N.P.T. Threaded Conduit Opening is Standard
See all product information

Product Information

Details

Item Classic Iv Twin Dpdt With Guard
Actions Single Stage Momentary
Switch Type Electrical
Shields & Guards Full Twin Guard
Cable Entries 3/4"-14 NPT threaded entry
MATERIALS One Piece Cast Aluminum Housing Single Stage Momentary Contact Aluminum baseplate on unguarded models Single Pedal 1/2"-14 N.P.T. Threaded Conduit Opening is Standard Twin Pedal 3/4"-14 N.P.T. Threaded Conduit Opening is Standard
PURPOSE Guarded, Compact & Waterproof Design
Electrical Ratings 16A, 125-250 VAC, 1/2 HP 125-250 VAC
Housing Materials Cast Aluminum
ENCLOSURE NEMA Type 1, 2, 4, 6, 6P & 13 • UL ENCLOSURE 1, 2, 4, 6, 6P & 13 • EN 60529 Degree Of Protection • IP68 • IEC 60601-2-2 • CSA ENCLOSURE 1, 2, 4, 6, 6P, & 13
Circuitries DPDT (Form CC)
FEATURES & BENEFITS Non-Skid Feet To Minimize Movement Divider Bar on Twin Models aids in Reducing Accidental Operation of Multiple Pedals at Once 4 holes provided for rigid mounting to floor or equipment Heavy Gauge Steel Full Guard painted Alert Orange Covering Entire Foot Switch
Switch Connections Quick-connect terminal
Housing Colors Orange, Black

Description

Classic Iv Twin Dpdt With Guard

Restrictions

  • WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Nickel carbonyl, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
