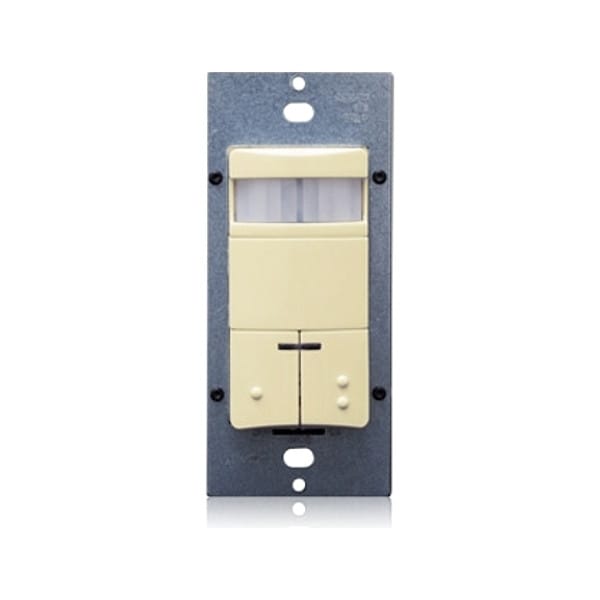

Occ Snsr, PIR, 120/230/277V AC, Ivory

Mfr # ODS0D-IDI
Zoro # G304836661

$86.45

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)
Installation Location - Motion Sensor Wall Switch Box
Coverage at Suggested Mounting Height 2,100 sq ft
Operating Voltage - Motion Sensing and Dimming 120/230/277 V AC

See all product information

Product Information

Brand Leviton
MFR # ODS0D-IDI
Zoro # G304836661
UPC #
78477954096
Country of Origin China
Category Motion Sensors

Dimensions

Coverage at Suggested Mounting Height	2,100 sq ft
Overall Width	1.75 in
Overall Height	4.06 in
Overall Depth	1.83 in

Details

Item - Motion Sensing and Dimming	Occupancy Sensor
Item	Occupancy Sensor
Communication Method - Motion Sensing and Dimming	Hard Wired
Sensing Technology	Passive Infrared (PIR)
Installation Location - Motion Sensor	Wall Switch Box
Operating Voltage - Motion Sensing and Dimming	120/230/277 V AC
Color - Motion Sensing and Dimming	White
Time Delay - Motion Sensor	30 sec to 30 min
Time Delay Adjustment Method - Motion Sensor	Adaptive, Adjustable
Coverage Angle - Motion Sensor	180 Degrees
Max. Capacity @ 120VAC	1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent)
Standards	cUL/US Certified, FCC Approved, Title 24, Part 6
Color	Ivory
Description/Special Features	Beep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens
Includes	Photocell
Lighting Technology	Incandescent
Max. Capacity @ 277VAC	2700V (Primary Relay Fluorescent)
Fan Rated	Yes
Maximum Coverage Area	2,100 sq ft
Rated Frequency	50/60 Hz
Coverage Angle	180 Degrees
Maximum Time Delay	30 min
Load Rating @ 277V AC	2,700V (Primary Relay Fluorescent)
Communication Method	Hard Wired
Installation Location	Wall
Number of Buttons	2
Series	Decora
Minimum Time Delay	30 sec
Includes Wall Plate	Wall Plate Not Included
Number of Gangs	1
Dimming Method	No Dimming
Maximum Operating Temperature	122 Degrees F
Time Delay Adjustment Method	Adaptive
Maximum Detection Distance	40 ft
Neutral Required	No
Nightlight	No
Compatible with Series	Switching Only (universal)
Coverage Type	Small Motion
Includes Motion Sensor	Yes
Includes Dimming Switch	Dimming Switch Not Included
Dimming Type	No Dimming
Manufacturer Warranty	5 yr
Load Rating @ 120V AC	1,200VA (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent)
Minimum Operating Temperature	32 Degrees F
Sensor Operation	Occupancy, Photocell, Vacancy

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Incandescent, Operating Voltage 120/230/277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,200VA (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,100 sq ft, Neutral Required No, Color Ivory, Nightlight No
