Shop All Push-to-Connect Tube Fittings
Legris

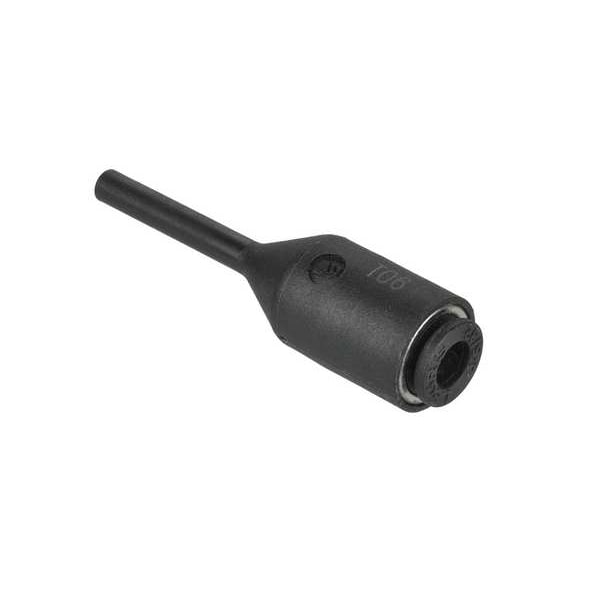

Fractional Push-to-Connect Fitting, Polymer, Black
Mfr # 3168 04 53
Zoro # G504860152
product price: $5.39
/ea
$5.39
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Specific Fitting Shape Plug-In Expander
- Overall Length 1 5/8 in
- System of Measurement Imperial
- Color Black
- Standards 2011/65/EC, DI : 1907/2006 (REACH), DI : 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743
Product Information
- Brand Legris
- MFR # 3168 04 53
- Zoro # G504860152
- Country of Origin Mexico
- Category Push-to-Connect Tube Fittings
Dimensions
| Overall Length | 1 5/8 in |
| Fitting Side A Tube Outer Diameter | 1/8 in |
| Fitting Side B Tube Outer Diameter | 5/32 in |
Details
| Item | Fractional Push-to-Connect Fitting |
| Specific Fitting Shape | Plug-In Expander |
| System of Measurement | Imperial |
| Color | Black |
| Standards | 2011/65/EC, DI : 1907/2006 (REACH), DI : 2002/95/EC (RoHS), DI: 97/23/EC (PED), ISO 14743 |
| Application | Air |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Compatible Tube Hardness | 95 Shore A |
| Maximum Operating Temperature | 176 Degrees F |
| Fitting Side B Connection Type | Push-to-Connect |
| Minimum Operating Temperature | -4 Degrees F |
| Maximum Operating Pressure | 20 barg |
| Vacuum Rating | 755 mmHg |
| Release Ring Material | Stainless Steel |
| Fitting Side A Connection Type | Push-to-Connect |
| Release Type | Ring |
Description
Fractional Push-to-Connect Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/8 in, Fitting Side B Tube Outer Diameter 5/32 in, Fitting Material Polymer, Color Black, Maximum Operating Pressure 20 barg, Maximum Operating Temperature 176 Degrees F, Overall Length 1 5/8 in, Specific Fitting Shape Plug-In Expander, Release Type Ring
