Shop All Push-to-Connect Tube Fittings
Legris

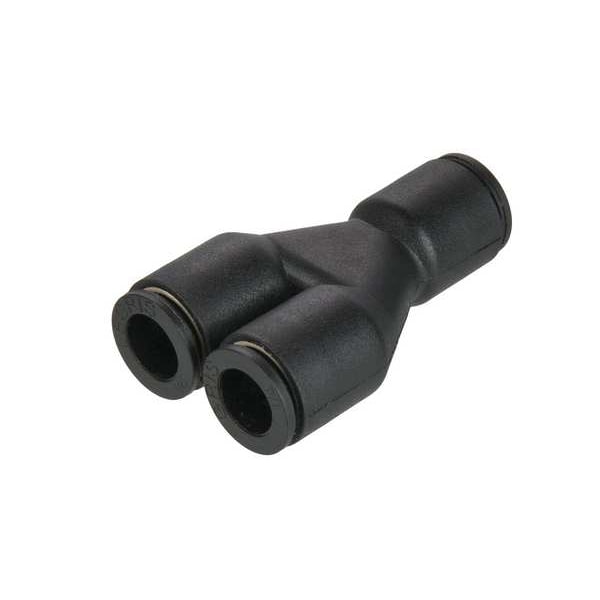

Fractional Push-to-Connect Fitting, Nylon, Black
Mfr # 3140 62 00
Zoro # G904995096
product price: $9.99
/ea
$9.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Specific Fitting Shape Wye
- Color Black
- Application Packaging, Air, Robotics, Semi-Conductors, Textile
- Overall Length 2 21/32 in
- System of Measurement Imperial
Product Information
- Brand Legris
- MFR # 3140 62 00
- Zoro # G904995096
- Country of Origin Mexico
- Category Push-to-Connect Tube Fittings
Dimensions
| Overall Length | 2 21/32 in |
| Fitting Side C Tube Outer Diameter | 1/2 in |
| Fitting Side B Tube Outer Diameter | 1/2 in |
Details
| Item | Fractional Push-to-Connect Fitting |
| Specific Fitting Shape | Wye |
| Color | Black |
| Application | Packaging, Air, Robotics, Semi-Conductors, Textile |
| System of Measurement | Imperial |
| Minimum Operating Temperature | -4 Degrees F |
| Includes Pre-Applied Thread Sealant | No |
| Fitting Side B Connection Type | Push-to-Connect |
| Vacuum Rating | 28 inHg |
| Fitting Side A Connection Type | Push-to-Connect |
| Maximum Operating Pressure | 290 psi |
| Fitting Material | Nylon |
| Fitting Side C Connection Type | Push-to-Connect |
| Maximum Operating Temperature | 176 Degrees F |
Description
Fractional Push-to-Connect Fitting, Application Packaging, Air, Robotics, Semi-Conductors, Textile, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Includes Pre-Applied Thread Sealant No, Fitting Side B Tube Outer Diameter 1/2 in, Fitting Side C Tube Outer Diameter 1/2 in, Fitting Material Nylon, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 176 Degrees F
Restrictions
- WARNING: Cancer For more information go to www.P65Warnings.ca.gov
