  11. Washdown Motor, 5 HP, Rigid Base, 60 Hz
Shop All DC Washdown Motors
Leeson

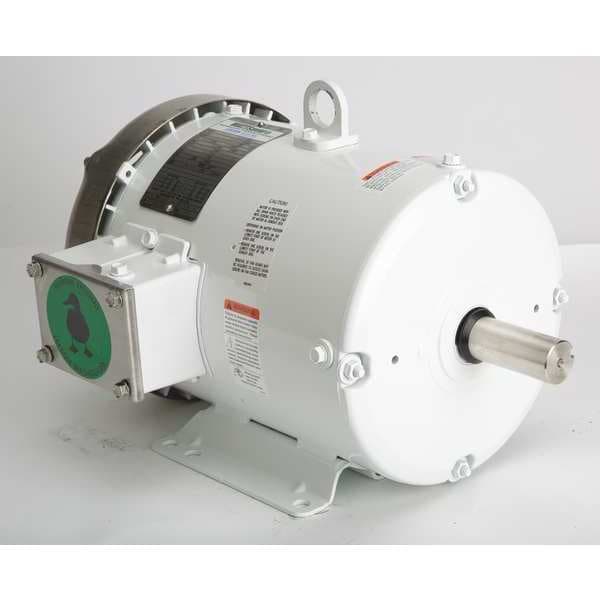

Washdown Motor, 5 HP, Rigid Base, 60 Hz

product price: $1,261.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 5
  • RPM Range 1,701-1,800
  • Voltage 230/460V AC
See all product information

Product Information

Dimensions

Length Less Shaft 11 1/8 in
Shaft Length 2 3/4 in
Shaft Dia. 1 1/8 in
Overall Length 13 15/16 in
Body Dia. 8.38 in
Manufacturers Warranty Length 1 yr

Description

Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
