Shop All DC Washdown Motors
Leeson

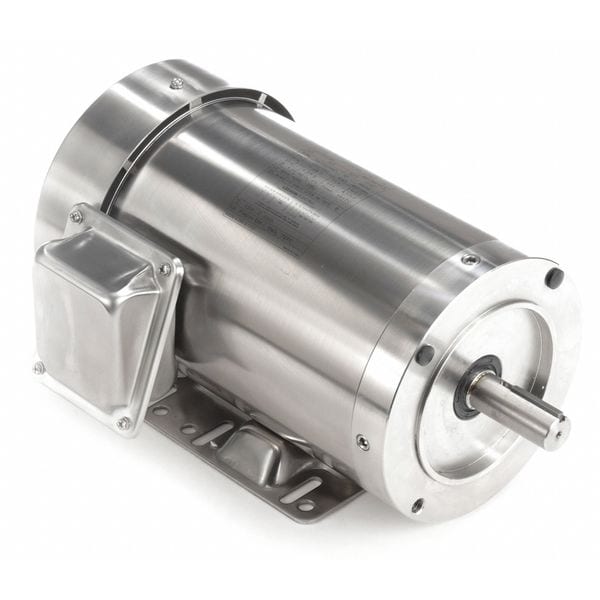

Washdown Motor, 3 HP, 3470 RPM
Mfr # 191492.00
Zoro # G4447549
product price: $1,171.99
/ea
Free Shipping & Returns
$1,171.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design 3-Phase
- Phase Three
- HP 3
- RPM Range 3,001-3,600
- Voltage 208-230/460V AC
Product Information
- Brand Leeson
- MFR # 191492.00
- Zoro # G4447549
- UPC # 691720246863
- Country of Origin China
- Category DC Washdown Motors
Dimensions
Length Less Shaft | 11 5/8 in |
Shaft Length | 2 1/4 in |
Shaft Dia. | 7/8 in |
Overall Length | 14 1/8 in |
Body Dia. | 6.5 in |
Manufacturers Warranty Length | 1 yr |
Bolt Circle Dia. | 5 7/8 in |
Description
Washdown Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3,470, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.0-7.2/3.6 A, 145TC Frame, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base
