Leeson

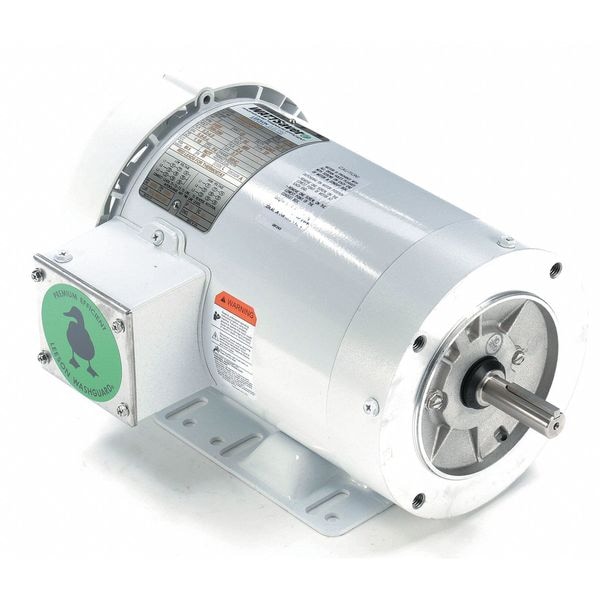

Washdown Motor, 2 HP, Face/Base, 56C Frame

original price: $863.99
1% off
new price: $851.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 2
  • RPM Range 3,001-3,600
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Length Less Shaft 11 7/16 in
Shaft Length 2 in
Overall Length 13 3/8 in
Body Dia. 7.38 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 3,490, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.2-4.8/2.4 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base
