Leeson

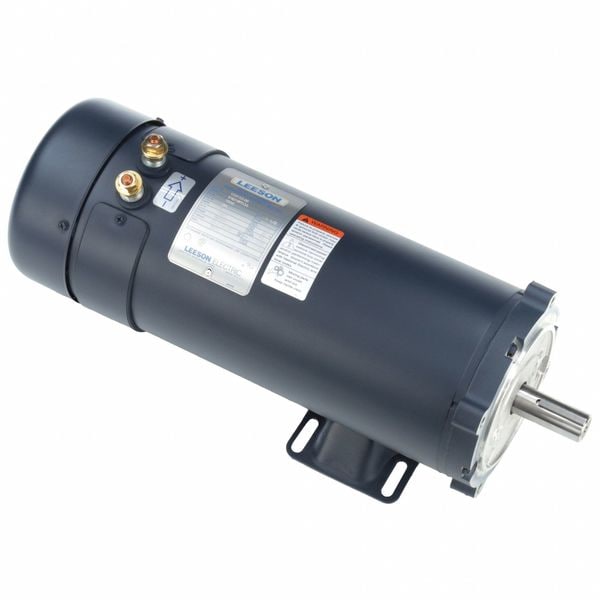

Low Voltage Motor, 1,800 RPM, 60.0 A
Mfr # 109103.00
Zoro # G907877542
original price:
$1,502.16
15% off
new price: $1,269.99
/ea
Free Shipping & Returns
$1,269.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1 1/2
- Voltage 24V DC
- Nameplate RPM 1,800
- Shaft Dia. 7/8 in
- Frame S56CZ
Product Information
- Brand Leeson
- MFR # 109103.00
- Zoro # G907877542
- UPC # 691720347454
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 7/8 in |
Overall Length | 17 3/8 in |
Bolt Circle Dia. | 6 5/16 in |
Details
Item | Low Voltage Motors |
HP | 1 1/2 |
Voltage | 24V DC |
Nameplate RPM | 1,800 |
Frame | S56CZ |
Full Load Amps | 60.0 |
RPM Range | 1800 |
Motor Thermal Protection | No Protection |
Motor Shaft Rotation | CW/CCW |
Motor Sub Application | General Purpose |
Nominal Efficiency | 77.5 % |
Ins. Class | H |
Voltage Compatibility | 24V DC |
Motor Service Factor | 1 |
Weight | 52 lb |
Motor Enclosure Design | Totally Enclosed Air-Over |
Standards | CSA, UL |
Motor Mounting Type | Rigid C Base |
Max. Ambient Temp. | 40 Degrees C |
Duty Cycle | Continuous |
Full Load Torque | 52.5 lb-in |
Description
Low Voltage Motors, 1 1/2 HP, Nameplate RPM 1,800, Voltage 24V DC, 60.0 Full Load Amps, S56CZ Frame, Full Load Torque 52.5 lb-in, Motor Service Factor 1, Motor Thermal Protection No Protection, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid C Base, Shaft Dia. 7/8 in, Overall Length 17 3/8 in
