Shop All DC Permanent Magnet Motors
Leeson

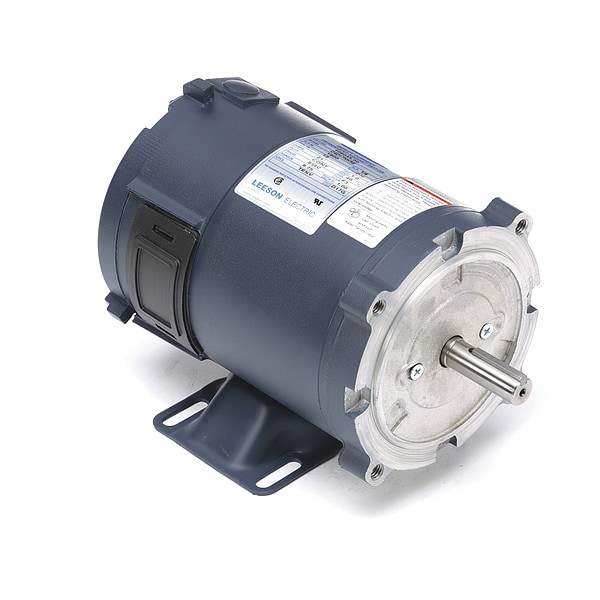

DC Permanent Magnet Motor, 21.0A, 12VDC
Mfr # 108045.00
Zoro # G4608865
product price: $520.99
/ea
Free Shipping & Returns
$520.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1/4
- Voltage 12V DC
- Nameplate RPM 1,800
- Shaft Dia. 5/8 in
- Frame 56C
Product Information
- Brand Leeson
- MFR # 108045.00
- Zoro # G4608865
- UPC # 691720006696
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 5/8 in |
Shaft Length | 1 7/8 in |
Overall Length | 10 1/4 in |
Length Less Shaft | 8 5/16 in |
Body Dia. | 5 5/8 in |
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/4 HP, Nameplate RPM 1,800, Voltage 12V DC, 21.0 A Full Load Amps, 56C Frame, Full Load Torque 8.8 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type Carbon
Restrictions
- Hazardous material
