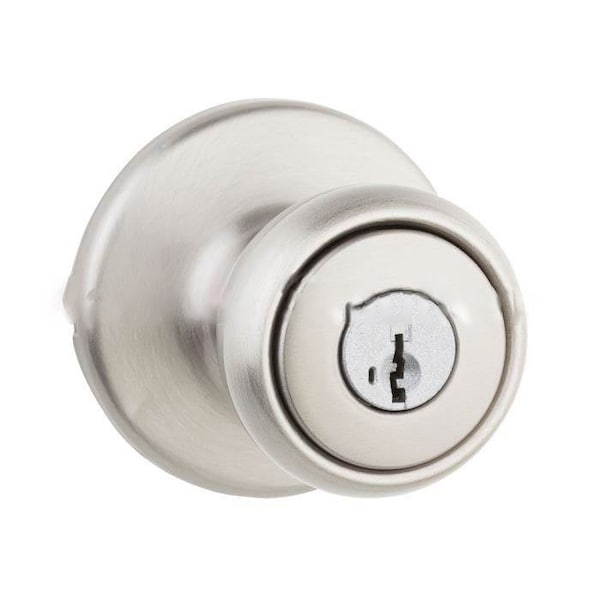

Tylo Keyed Entry Knob

SmartKey with 6AL Latch and Round Corner Strike in Satin Nickel
Tylo KnobFeaturing SmartKeyGreat hardware can transform the look of your home. With a variety of styles, functions and finishes, Kwikset's knobs are sure to define your decor from the moment someone walks into your home.Features:

• Features SmartKey Re-key Technologywith BumpGuard Protection
• ANSI/BHMA Grade 3 Certified Quality & Security

Specifications: Door Prep:

• Cross Bore 2-1/8.
• Edge Bore 1.

Backset:

• Adjustable 2-3/8 or 2-3/4.

Door Thickness:

• 1-3/8 to 1-3/4 standard, 2 1/4 doors optional on 200 and 400 functions only

Cylinder:

• SmartKey or Traditional 5-pin Pin & Tumbler

Faceplates:

• 1 x 2-1/4 Specify round corner or square corner. Also available as drive-in latch.

Strikes:

• 2-1/4 full lip. Specify round corner or square corner. Other options available.

Bolt:

• 1/2 throw.

Door Handing:

• Reversible for right or left hand doors.

ANSI/BHMA:

• A156.2 Grade
• all functions except 488

Functions: 200 Passage/Hall/Closet:

• Both knobs always free.

300 Privacy/Bed/Bath:

• Both knobs locked or unlocked by turnbutton inside. Unlocked by emergency key outside

400 Keyed Entry:

• Both knobs locked or unlocked by key outside or turnbutton inside.

401 Keyed Entry, Free Interior:

• Outside locked or unlocked by key outside or turn button inside. Inside always free.

488 Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.

Finishes:

• Polished Brass - 3
• Antique Brass - 5
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 3.
