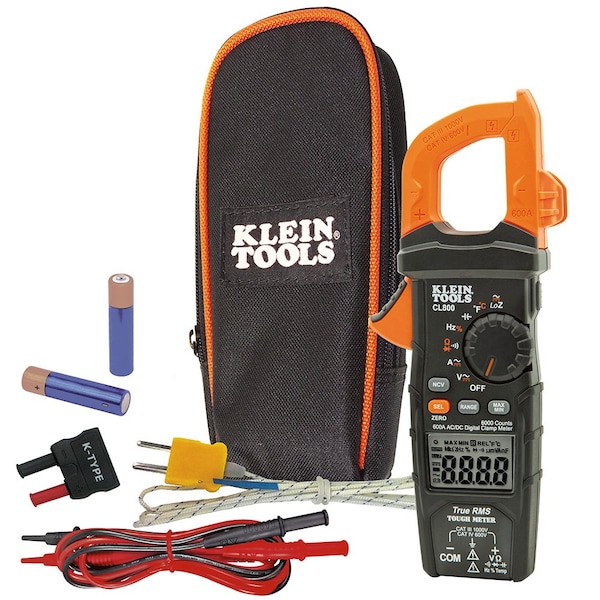

Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), Auto Off

Mfr # CL800
Zoro # G7111776

$129.97

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Digital/Analog Digital
Max. AC Amps 600
Clamp Meter Jaw Style Clamp On
Max. DC Volts 1,000 V
Max. Ohms 60 megaohm

See all product information

Product Information

Brand Klein Tools
MFR # CL800
Zoro # G7111776
UPC #
092644690167
Country of Origin China
Category Clamp On Power Meters

Dimensions

Max. Conductor Size	750 kcmil
Manufacturers Warranty Length	2 yr
Overall Height	1.6 in
Overall Width	3.8 in
Battery Size	AAA
Maximum Conductor Size	750MCM

Details

Item	Digital Clamp Meter
Digital/Analog	Digital
Max. AC Amps	600
Clamp Meter Jaw Style	Clamp On
Max. DC Volts	1,000 V
Max. Ohms	60 megaohm
Jaw Capacity	1.4 in (36 mm)
Temp. Range	-14 Degrees to 1000 Degrees F
Safety Rating	CAT IV 600V
Display	LCD
Jaw Opening	1.38 in
Max. DC Amps	600
Max. AC Volts	1,000 V
Calibration Frequency	45 to 400 Hz
Diode Test	Yes
Frequency Counter	1 Hz to 500 KHz
Special Features	Low Battery Indicator
Battery Type	AAA
Peak Hold	Yes
Operating Temp.	32 Degrees to 104 Degrees F
Audible Continuity	Yes
Counts	6,000
Standards	CE
Midscale Resistance	300 ohm
AC Current Accuracy	+/-2.0% + 5 Digits
Bar Graph	No
Includes	41 in (1041.4 mm) Test Leads, Carrying Case, Thermocouple with Adapter
Data Hold	Yes
AC Response	TRMS
Thermometer Type	Type K Thermocouple
Inrush	No
Non-Contact Voltage Detector	Yes
Auto Power Off	Yes
Auto Ranging	Yes
Memory	Max/Min
Capacitance	6,000 uF
Data Logging	No
Resistance Measurement Resolution	10 microohm
DC Voltage Measurement Resolution	100 mV
Removable Screen	No
Resistance Measurement Accuracy	+/-1.5% + 5 Digits
Bar Graph Included	No
Current Leakage Testing	No
Basic AC Voltage Accuracy	+/-1.50% + 5 Digits
Inrush Current Measurable	No
Maximum Resistance Measurement	60 megaohm
Maximum Operating Temperature	1,000 Degrees F
AC Response Calculation	TRMS
Waterproof	No
Intrinsically Safe	No
Parameters Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature (K)
Display Type	LCD
Basic DC Voltage Accuracy	+/-1.20% + 3 Digits
Batteries Included	Yes
Dustproof	No
Capacitance Measurement Accuracy	+/-3% + 5 Digits
Maximum AC Current Measurement	600 A
Minimum Operating Temperature	-14 Degrees F
Calibration Certificate Included	No
Maximum Capacitance Measurement	6,000 uF
AC Current Measurement Resolution	100 mA
Maximum DC Current Measurement	600 A
Capacitance Measurement Resolution	1 uF
IP Rating	IP40
AC Voltage Measurement Resolution	100 mV
Thermal Imaging	No
Instrument Counts	6,000
Maximum AC Voltage Measurement	1,000 V
Maximum DC Voltage Measurement	1,000 V
Jaw Style	Clamp-Jaw
Frequency Measurement Accuracy	+/-1% + 5 Digits
DC Current Measurement Resolution	100 mA
Bluetooth Compatible	No
Basic AC Current Accuracy	+/-2.00% + 5 Digits
Basic DC Current Accuracy	+/-2.00% + 5 Digits

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No, Thermal Imaging No
