Shop All Countersunk Washers
J.W. Winco

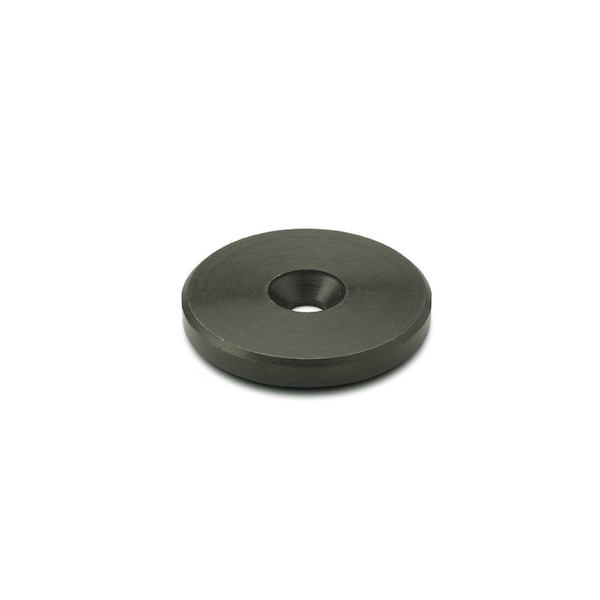

Countersunk Washer, Fits Bolt Size M4 Steel, Blackened Finish
Mfr # 16WG43
Zoro # G700663601
product price: $0.80
/ea
Sold in multiples of 9 for $7.20
$7.20
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Steel
- Finish Blackened
- Thickness 3 mm
- Maximum Inside Diameter 4.3 mm
- Standards GN 184
Product Information
- Brand J.W. Winco
- MFR # 16WG43
- Zoro # G700663601
- UPC # 664423040120
- Country of Origin Taiwan, Province of China
- Category Countersunk Washers
Dimensions
For Screw Size | M4 |
Outside Diameter | 16 mm |
Maximum Inside Diameter | 4.3 mm |
Details
Item | Countersunk Washer |
Material | Steel |
Finish | Blackened |
Thickness | 3 mm |
Standards | GN 184 |
System of Measurement | Metric |
Description
GN 184 countersunk washers are retained to the face of the shaft end with countersunk screws, forming a clean-look end cap. A typical application example would be the retention of a handwheel with keyway to a shaft.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
