Jomar Valve

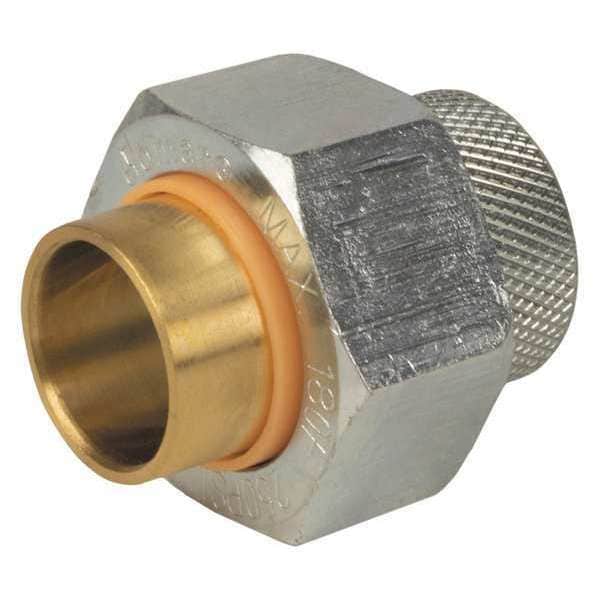

LF Dielectric Union FIPxSolder, 2"

product price: $45.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fitting Connection Type Female NPT x Solder
  • Pipe Size - Pipe Fitting 2"
  • Standards ANSI B1.20.1, ASME/ANSI B16.18, Lead Free Compliant
  • Pipe Size (Fittings) 2"
  • Insulator Material Nylon 66
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 2"
Pipe Size (Fittings) 2"
Hex Size 3 3/4 in
Fitting Side B Nominal Pipe Size 2 in
Overall Length 3 1/16 in
Fitting Side A Nominal Pipe Size 2 in

Details

Item Dielectric Union
Fitting Connection Type Female NPT x Solder
Standards ANSI B1.20.1, ASME/ANSI B16.18, Lead Free Compliant
Insulator Material Nylon 66
Nut Material Steel
Gasket Material Buna-N
Basic Pipe Fitting Shape Union
Specific Fitting Shape Dielectric Union
Fitting Side A Gender Female
Color Brass
Temp. Range -20 Degrees F to 180 Degrees F
Fitting Side A Finish/Coating Zinc-Plated Galvanized
Fitting Side B Type Solder
Fitting Side A Material Steel
Maximum Operating Pressure 250 psi
Fitting Side A Type NPT
Fitting Side B Material Brass

Description

Dielectric Union, Steel, Zinc-Plated Galvanized, Brass, 2 in, Female, NPT, 2 in, Solder, Insulator Material Nylon 66, Gasket Material Buna-N, Nut Material Steel, 250 psi Maximum Operating Pressure, -20 Degrees F to 180 Degrees F, 3 1/16 in Overall Length

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
