Johnson Controls

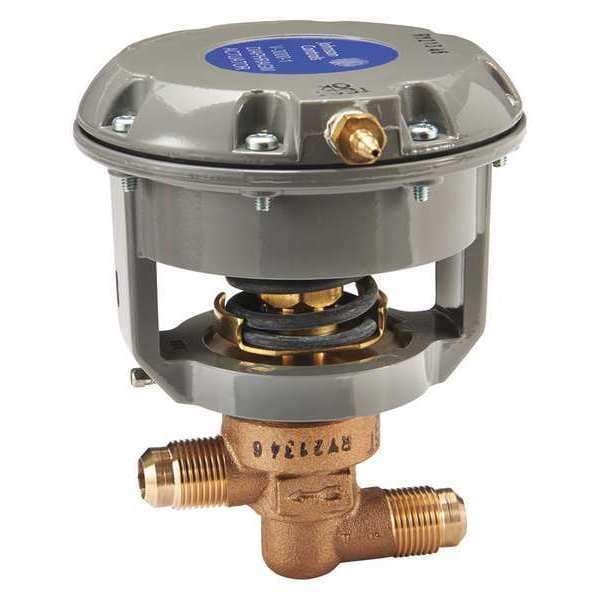

Pneumatic Flare Valve, Brass, 1/2 in.
Mfr # V-3766-1003
Zoro # G6895131
product price: $408.79
/ea
Free Shipping & Returns
$408.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Brass
- Valve Design 2-Way
- Coefficient of Volume 3.2
- Maximum Pressure - Operating 345 psi
- Connection Size - Side 1 1/2 in
Product Information
- Brand Johnson Controls
- MFR # V-3766-1003
- Zoro # G6895131
- Country of Origin Mexico
- Category Zone Valves and Accessories
Dimensions
Connection Size - Side 1 | 1/2 in |
Connection Size - Side 2 | 1/2 in |
Nominal Valve Size | 1/2 in |
Details
Item | Pneumatically Actuated Diaphragm Valve |
Body Material | Brass |
Valve Design | 2-Way |
Coefficient of Volume | 3.2 |
Maximum Pressure - Operating | 345 psi |
For Media | Water |
Valve Deactivated State | Normally Open (NO) |
Actuator Operation | Air to Spring |
Diaphragm Valve Type | 2-Way |
Operating Temperature - Minimum | 195 Degrees F |
Stem Material | Stainless Steel |
Connection Type - Side 1 | Flare |
Operating Temperature - Maximum | 281 Degrees F |
Diaphragm Material | Reinforced Synthetic Rubber |
Coefficient of Volume (Cv) | 3.2 |
Actuator Air Port Connection | 1/8 in NPT |
Ambient Temperature - Maximum | 150 Degrees F |
Connection Type - Side 2 | Flare |
Ambient Temperature - Minimum | -10 Degrees F |
Description
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 3.2, Nominal Valve Size 1/2 in, Actuator Air Port Connection 1/8 in NPT, Connection Type - Side 1 Flare, Connection Type - Side 2 Flare, For Media Water, Diaphragm Material Reinforced Synthetic Rubber, Operating Temperature - Maximum 281 Degrees F, Maximum Pressure - Operating 345 psi, Valve Deactivated State Normally Open (NO), Body Material Brass, Diaphragm Valve Type 2-Way, Stem Material Stainless Steel
Restrictions
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
