Johnson Controls

Horizontal Remote Mounting Kit

product price: $70.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With M9220 Series Actuator

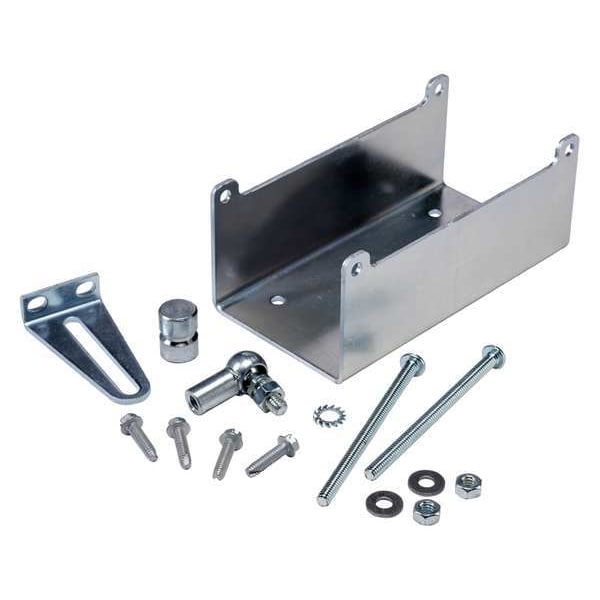

  • Includes Crank Arm, (2) 1/4"-20 UNC-2A Machine Screws, (2) Hex Nuts, (2) Washers, (4) #12-24 x 0.875 Self Tapping, Hex-Washer Head Screws, Drive Shaft Center, Mounting Bracket
  • Product Type Remote Mounting Kit
  • Compatible with Series M9220
  • Compatible with Manufacturer Model Number M9220-BAC-3
See all product information

Product Information

Dimensions

Thread Size M8-1.25
Overall Width 3 7/8 in
Overall Length 3 3/8 in
Overall Height 13 in

Details

Item Remote Mounting Kit
For Use With M9220 Series Actuator
Includes Crank Arm, (2) 1/4"-20 UNC-2A Machine Screws, (2) Hex Nuts, (2) Washers, (4) #12-24 x 0.875 Self Tapping, Hex-Washer Head Screws, Drive Shaft Center, Mounting Bracket
Product Type Remote Mounting Kit
Compatible with Series M9220
Compatible with Manufacturer Model Number M9220-BAC-3
Compatible Manufacturer Part Number M9220-BAC-3
Compatible with Manufacturer Part Number M9220
Compatible with Brand Johnson Controls
Compatible with Manufacturer Model Number [NEW] M9220
Standards CE Listed, CSA C22.2 No.139, EMC Directive 2004/108/EC, UL 873, File E27734, CCN XAPX
Compatible Manufacturer Model Number M9220-BAC-3
For Use with Mfr. Model Number M9220-BAC-3
For Use With Mfr. Model Number M9220-BAC-3

Description

Remote Mounting Kit, Product Type Remote Mounting Kit, Compatible with Brand Johnson Controls, Compatible with Manufacturer Model Number M9220-BAC-3, Compatible with Grainger Part Number 41P596, Compatible with Series M9220, Includes Crank Arm, (2) 1/4 In.-20 UNC-2A Machine Screws, (2) Hex Nuts, (2) Washers, (4) #12-24 x 0.875 Self Tapping, Hex-Washer Head Screws, Drive Shaft Center, Mounting Bracket, Overall Height 13 in, Overall Length 3 3/8 in, Overall Width 3 7/8 in, Thread Size M8-1.25
