Shop All Pneumatic Actuators
Johnson Controls

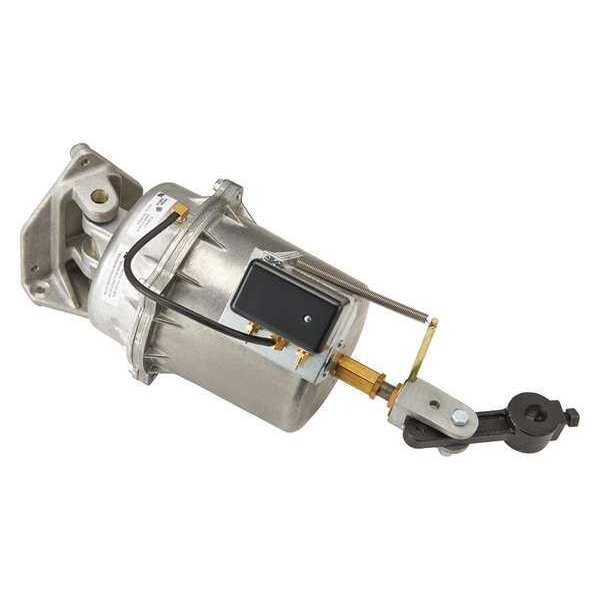

Damper Actuator, 813Spring W/Pos
Mfr # D-3244-3
Zoro # G6180824
Free Shipping & Returns
$1,283.22
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Operating PSI Range 0 to 25
- Max. Air Pressure 25 psi
- Stroke 4 in
- Nominal Spring Range 8 to 13 psi
- Mounting Type Pivot
Product Information
- Brand Johnson Controls
- MFR # D-3244-3
- Zoro # G6180824
- Country of Origin Mexico
- Category Pneumatic Actuators
Dimensions
Length | 15 3/4 in |
Width | 12 in |
Height | 23 5/8 in |
Overall Length | 15 3/4 in |
Overall Depth | 23 5/8 in |
Air Connection Size | 1/8 in |
Overall Width | 9 3/4 in |
Description
Pneumatic Damper Actuator, Actuator Connection Clevis, Actuator Type Linear, Air Connection Size 1/8 in, Air Connection Type NPT, Application Dampers, Control Pressure - Maximum 25 psi, Control Pressure - Minimum 8 psi, Diaphragm Material Synthetic Elastomer, Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications, Force at 20 psi 27.3 lbf, Includes Positioner Positioner Included, Installation Orientation Versatile, Manufacturer Series D-3240
