Intermatic

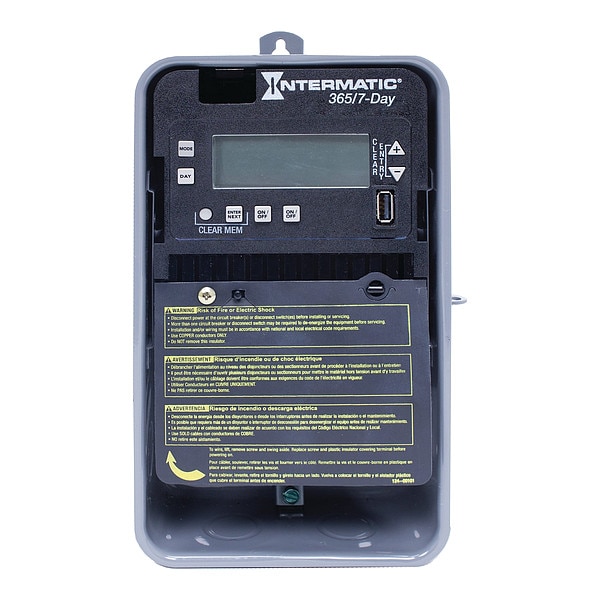

Electronic Timer, 7/365 Days, 30A

product price: $310.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operation Mode 7/365 Days
  • Number of Channels 2
  • Contact Form SPST
  • Voltage 120 to 277V AC
  • Amps 30 A
See all product information

Product Information

Dimensions

Width 6 1/2 in
Depth 3 5/8 in
Height 10 1/8 in
Display Width 3 in
Display Height 1 in
Max. Wire Size #8 AWG
Min. Wire Size #14 AWG
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Product Width (in) 6.5
Wire Size Max #8 AWG
Product Depth (in) 3.625
Wire Size Min #14 AWG
Product Height (in) 10.125
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"

Description

Electronic Timer, Operation Mode 7/365 Days, Number of Channels 2, Contact Form SPST, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Pulse, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event, Pulse Duration 2 sec, Enclosure Metal, Mounting Surface, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 3R, Color Gray
