  13. Dial Indicator, AGD 1, 0.0005" Graduations
Shop All Dial Indicators
Insize

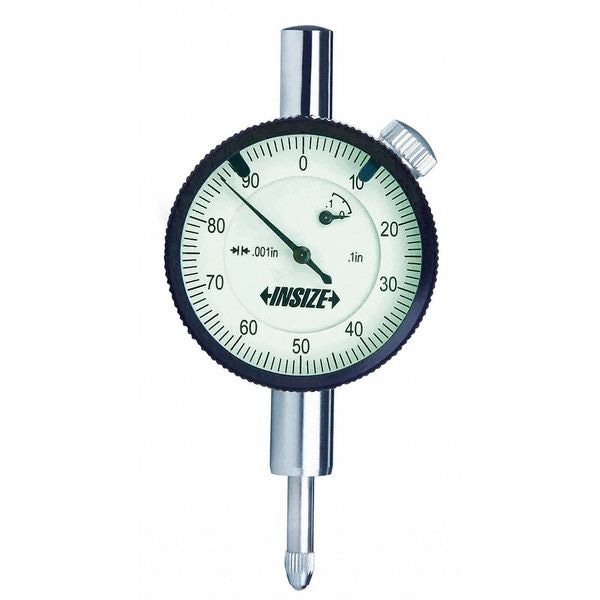

Dial Indicator, AGD 1, 0.0005" Graduations

product price: $61.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Graduations 0.0005 in
  • Features Contact Point #4-48 UNF Thread
  • Accuracy +/-0.0005 in
  • Includes Limit Pointer
  • Contact Point Style Carbide
See all product information

Product Information

Dimensions

Contact Point Dia. 0.125 in
Dial Size 1.58 in
Stem Dia. 0.375 in
Stem Thread Size #4-48
Dimension Type Inch

Details

Graduations 0.0005 in
Range 0 in to 0.25 in
Features Contact Point #4-48 UNF Thread
Accuracy +/-0.0005 in
Includes Limit Pointer
Contact Point Style Carbide
Reading Continuous
Bearing Type Plain
Dial Reading 0-50
Dial Color White
AGD No. AGD 1
Long Form Calibration Certificate No
Bezel Lock Yes
Range per Revolution 0.05 in
Standards ASME B89.1.10M-2001
Back Type Lug
Item Dial Indicator - Lug Back
Included Certification Short Form Certificate Traceable to NIST
Shock Resistant No
Operation Type Plunger
AGD Number AGD 1
Minimum Measurement - Inch 0 in
Includes Case Yes
Number of Indicators 1
Maximum Measurement - Inch 0.25 in
Case Type Case
Non-Magnetic Yes
Contact Point Shape Ball

Description

Dial Indicator - Lug Back, Range 0 in to 0.25 in, Graduations 0.0005 in, Accuracy +/-0.0005 in, Long Form Calibration Certificate No, AGD Number AGD 1, Back Type Lug, Dial Color White, Dial Reading 0-50, Dial Size 1.58 in, Dimension Type Inch, Included Certification Short Form Certificate Traceable to NIST, Maximum Measurement - Inch 0.25 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Plunger, Range per Revolution 0.05 in, Reading Continuous, Bearing Type Plain
