Shop All Thrust Washers
Ina

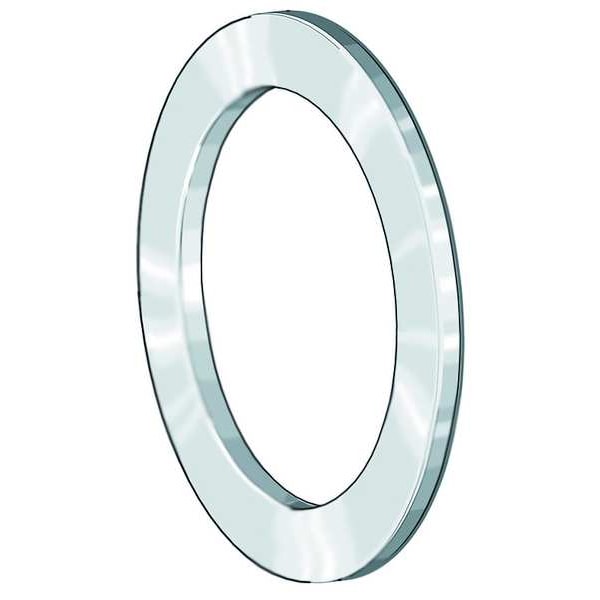

Thrust Washer, Inside Dia. 1.500 In
Mfr # TWB2435
Zoro # G2201805
original price:
$4.35
10% off
new price: $3.89
/ea
$3.89
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inside Dia. (In.) 1.5 in
- Outside Dia. (In.) 2.188 in
- Thickness (In.) 0.06 in
- Construction Material Steel
- Nominal Inside Dia. 1 1/2 in
Product Information
- Brand Ina
- MFR # TWB2435
- Zoro # G2201805
- Country of Origin United States
- Category Thrust Washers
Dimensions
| Inside Dia. (In.) | 1.5 in |
| Outside Dia. (In.) | 2.188 in |
| Nominal Inside Dia. | 1 1/2 in |
| Nominal Outside Dia. | 2 3/16 in |
| Bore Diameter | 1 1/2 in |
| Outside Diameter | 2 3/16 in |
Details
| Thickness (In.) | 0.06 in |
| Construction Material | Steel |
| Item | Roller Thrust Bearing Washer |
| Thickness | 1/16 in |
| System of Measurement | Inch |
| Minimum Temperature | -5 Degrees F |
| Lubrication Type | Lubrication Required |
| Self Lubricating Bearing | No |
| Maximum Temperature | 250 Degrees F |
| Series | TRB, TWB |
| Compatible Bearing | 2435 |
| For Thrust Bearing Type | Needle Roller |
| Washer Thickness | 1/16 in |
| Washer Material | Alloy Steel |
| Washer Material Grade | 100Cr6 |
| Standards | ABMA 21.2-1988 |
Description
Roller Thrust Bearing Washer, Bore Diameter 1 1/2 in, Compatible Bearing 2435, For Thrust Bearing Type Needle Roller, Lubrication Type Lubrication Required, Maximum Temperature 250 Degrees F, Minimum Temperature -5 Degrees F, Outside Diameter 2 3/16 in, Self Lubricating Bearing No, System of Measurement Inch, Washer Thickness 1/16 in, Maximum PV Not Applicable, Series TRB, TWB, Standards ABMA 21.2-1988, Washer Material Alloy Steel, Washer Material Grade 100Cr6
