Ifm

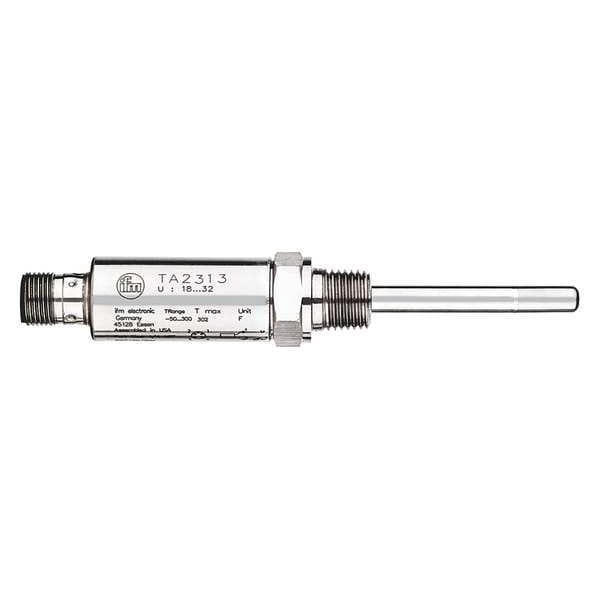

Temp Transducer, 1-31/32 in., 1/2 in. NPT

product price: $256.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range 0 to 300 Degrees F
  • Process Connection 1/2 in NPT
  • Display LED
  • Power Required 18 to 32V DC
  • Mounting Adapter
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 5 yr
Probe Dia. 15/64 in
Probe Length 1.97 in
Process Connection Size 1/2 in
Overall Length 4.95 in
Probe Diameter 0.23 in

Description

Temperature Transducer, Maximum Sensed Temperature 302 Degrees F, Minimum Sensed Temperature -58 Degrees F, Temperature Accuracy +/-0.3K + 0.1 Percent Mid-Scale, +/-0.54 Degrees F + 0.1 Percent Mid-Scale, Power Required 18 to 32V DC, Electrical Connections 4-Pin M12 Connector, Overall Length 4.95 in, IP Rating IP67, IP68, IP69K, Series TA, Output 4 to 20mA DC, Probe Length 1.97 in, Sensing Element Type Pt1000 RTD, Display LED, Display Type Analog, Enclosure Material Stainless Steel
