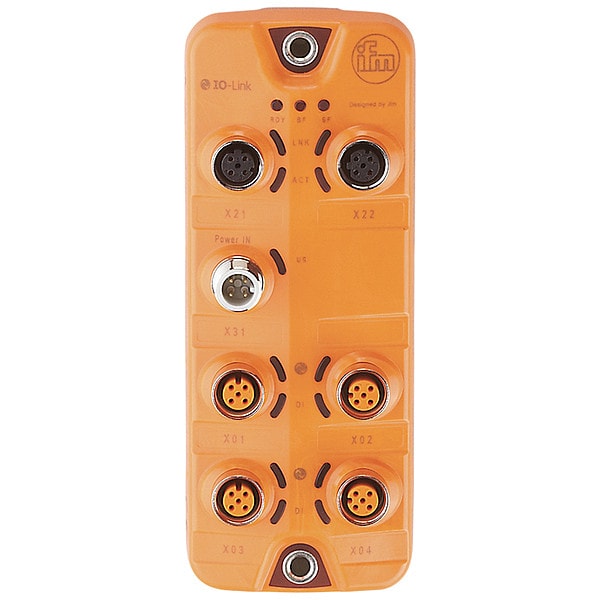

IO-Link Master, 8 Inputs, 20 to 30VDC

Mfr # AL1120
Zoro # G008168082

$364.99

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Application I/O Modules for Field Applications
Housing Material Polyamide
Standards CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Operating Voltage 20 to 30V DC
Number of Digital Inputs 8

See all product information

Product Information

Brand Ifm
MFR # AL1120
Zoro # G008168082
Country of Origin Poland
Category Power Strips

Details

Item	IO-Link Master
Application	I/O Modules for Field Applications
Housing Material	Polyamide
Standards	CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Operating Voltage	20 to 30V DC
Number of Digital Inputs	8
Communication Interface	Ethernet, IO-Link
IO-Link Revision	1.1
Maximum Current Load Per Output	300 mA
Electrical Connection Type	M12 Connector
Transmission Rate	10 MBps, 100 MBps
Minimum Ambient Temperature	-25 Degrees C
Maximum Ambient Temperature	60 Degrees C
Number of Digital Outputs	4
Transmission Type	COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
Protection Features	IP65, IP66, IP67, Protection Class III
Current Consumption	3,900 mA
Number of ports class A	4
Protection	IP 65; IP 66; IP 67
Materials	housing: PA orange; socket: brass nickel-plated
Max. relative air humidity [%]	90
Note on interfaces	DHCP, BOOTP, static DLR (Device Level Ring) Supported network topologies: line ring
Protection class	III
Current consumption [mA]	300...3900; (US)
Switching level high [V]	11...30
Number of inputs and outputs	Number of digital inputs: 8; Number of digital outputs: 4
EMC	EN 61000-6-2 EN 61000-6-4
Transmission standard	10Base-T; 100Base-TX
Operating voltage [V]	20...30 DC; (US; to SELV/PELV)
Chemical media	ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA
Sealing material	FKM
Switching level low [V]	0...5
Short-circuit proof	yes
Max. current load per output [mA]	300
Max. current load total [A]	3.6
Storage temperature [°C]	-25...85
Ambient temperature [°C]	-25...60
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
Pollution degree	2
Factory settings	IP address: 192.168.1.250 subnet mask: 255.255.255.0 gateway IP address: 0.0.0.0 MAC address: see type label
X31	Connector: M12; coding: A
IO-Link Port Class A X01...X04	Connector: M12; coding: A; Sealing: FKM
Daisy-chain function	fieldbus interface
Digital inputs protected against short circuits	yes
Shock resistance	DIN EN 60068-2-27
Total number of inputs and outputs	8; (configurable)
MTTF [years]	96
Protection rating (NEMA 250)	6P
Protocol	EtherNet/IP
IN / OUT X21, X22	Connector: M12; coding: D; Sealing: FKM

Description

IO-Link Master, Application I/O Modules for Field Applications, Communication Interface Ethernet, IO-Link, Current Consumption 3,900 mA, Electrical Connection Type M12 Connector, Housing Material Polyamide, IO-Link Revision 1.1, Maximum Ambient Temperature 60 Degrees C, Maximum Current Load Per Output 300 mA, Minimum Ambient Temperature -25 Degrees C, Number of Digital Inputs 8, Number of Digital Outputs 4, Operating Voltage 20 to 30V DC
