Shop All Voice & Data Patch Panels
Icc

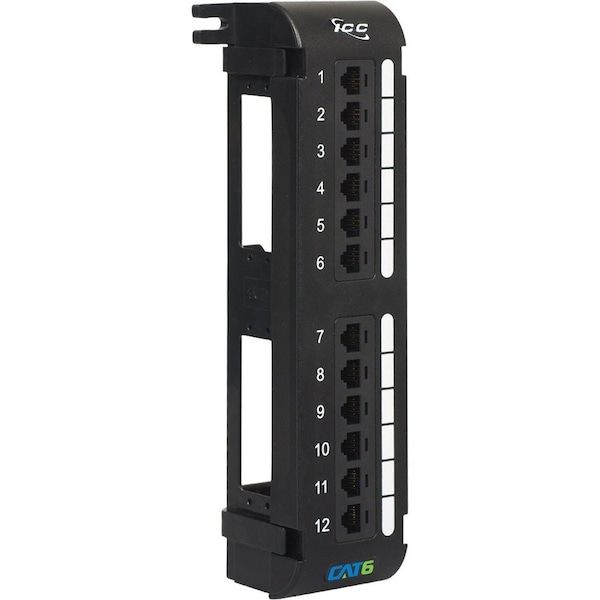

PATCH PANEL, VERTICAL, CAT 6, 12-PORT
Mfr # ICMPP12V60
Zoro # G309851126
product price: $53.19
/ea
$53.19
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Contact Resistance 2.5 milliohms max
- Force 100 grams min/contact
- Gold Rating 50 micro inch gold over 100 micro inches of nickel
- Temperature Range -40 degrees C to 70 degrees C
- Spring Wire Phosphor Bronze
Product Information
- Brand Icc
- MFR # ICMPP12V60
- Zoro # G309851126
- UPC # 633758011280
- Country of Origin Taiwan, Province of China
- Category Voice & Data Patch Panels
Details
| Contact Resistance | 2.5 milliohms max |
| Force | 100 grams min/contact |
| Gold Rating | 50 micro inch gold over 100 micro inches of nickel |
| Temperature Range | -40 degrees C to 70 degrees C |
| Spring Wire | Phosphor Bronze |
| Connector | 8P8C |
| Ports | 12 |
| Port Labeling | Port Spacing: 0.6, Tape Width: 3/8" (9mm) |
| Plug Retention Jack | 50N (11 lbs SQ) |
| Product Type | 110 Panels |
| 12 Port Patch Panel | ABS, UL 94V-0 |
| IDC Wire Gauge | 22-24 AWG |
| 110 Connector | Phosphor Bronze Alloy with 100 microinch Alloy |
| Mounting | Wall |
| Current Rating | 1.5 AMP DC |
| Jack Housing | High impact, flame retardant plastic, UL 94V-0 |
| Surface Finish | Black Powder Coat |
Description
Cat 6 12 Port Patch Panel- Wall mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals- Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements- Engineering to provide 110 IDC termination reducing installation time- Includes both TIA-568A/B color wiring diagrams- Backwards compatible to all lower rated category components- UL listed
