Honeywell

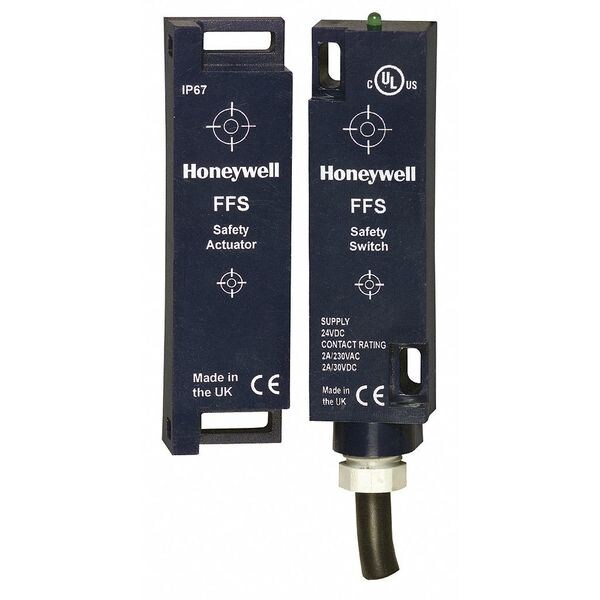

1NC/1NO Magnetically Actuated Safety Interlock Switch
Mfr # FFS-11-10
Zoro # G4192413
Free Shipping & Returns
$712.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series FFS
- AC Contact Rating 2 A @ 230 V
- DC Contact Rating 2 A @ 24 V
- Contact Form 1NC, 1NO, 2NC
- IP Rating IP67
Product Information
- Brand Honeywell
- MFR # FFS-11-10
- Zoro # G4192413
- Country of Origin United Kingdom
- Category Safety Interlock Switches
Dimensions
Switch Width | 0.75 in |
Actuator Height | 3.43 in |
Switch Depth | 0.19 in |
Cable Length | 32.81 ft |
Actuator Depth | 0.67 in |
Actuator Width | 0.94 in |
Switch Height | 3.43 in |
Magnet Actuator Height | 3.43 in |
Overall Depth | 0.75 in |
Magnet Actuator Depth | 0.67 in |
Overall Height | 3.43 in |
Overall Width | 0.94 in |
Magnet Actuator Width | 0.94 in |
Description
Magnetically Actuated Safety Interlock Switch, Series FFS, Switch Width 0.75 in, Switch Height 3.43 in, Switch Depth 0.19 in, Contact Form 1NC, 1NO, 2NC, AC Contact Rating 2 A @ 230 V, DC Contact Rating 2 A @ 24 V, Operating Temp. Range 14 Degrees to 131 Degrees F, Termination Type Pre-Cabled, Cable Length 32.81 ft, IP Rating IP67, Actuator Width 0.94 in, Actuator Height 3.43 in, Actuator Depth 0.67 in, On Sensing Distance 0.28 in, Off Sensing Distance 0.47 in, Body Material ABS
Restrictions
- Hazardous material
