Shop All Floor Jacks
Hein-Werner

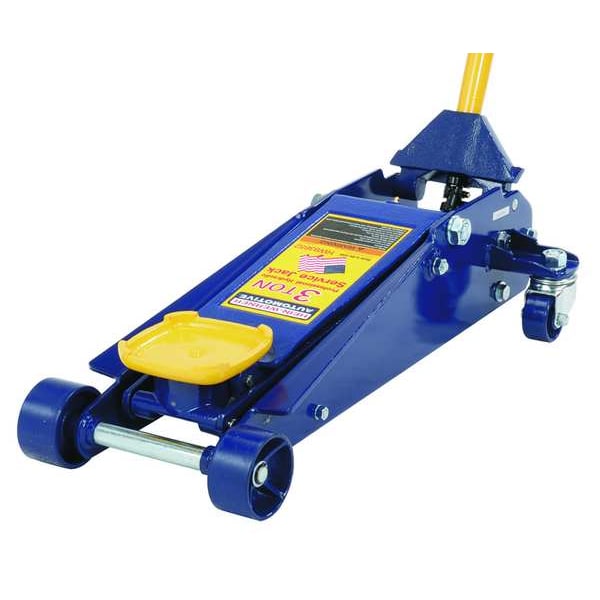

3 Tons Hydraulic Service Jack 23-1/2" Max. Lifting H., 5-1/4" Min. Lifting H
Mfr # HW93652W
Zoro # G0740117
product price: $659.99
/ea
Free Shipping & Returns
$659.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Base Length 31 in
- Number of Casters 2
- Lifting Capacity 3 ton
- Base Height 7 1/4 in
- Standards ANSI/ASME PALD
Product Information
- Brand Hein-Werner
- MFR # HW93652W
- Zoro # G0740117
- UPC # 047077054697
- Country of Origin Multiple
- Category Floor Jacks
Dimensions
Base Length | 31 in |
Base Height | 7 1/4 in |
Base Width | 16 in |
Handle Length | 48 in |
Lifting Height Min. | 5 1/4 in |
Lifting Height Max. | 23 1/2 in |
Chassis Length | 31 1/2 in |
Caster Wheel Dia. | 2 1/2 in |
Length | 31-1/2" |
Wheel Diameter | 2 1/2 in |
Overall Width | 15 in |
Chassis Height | 7 1/4 in |
Extended Height | 23 1/2 in |
Minimum Height | 5 in |
Maximum Lift Height | 23 1/2 in |
Saddle Diameter | 6 3/4 in |
Chassis Width | 16 in |
Minimum Lift Height | 5 1/4 in |
Description
Trolley Floor Jacks, Jack Type Floor Jack, Load Capacity 3 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 5 1/4 in, Maximum Lift Height 23 1/2 in, Power Source Mechanical, Minimum Height 5 in, For Vehicle Type Trucks, Chassis Height 7 1/4 in, Chassis Length 31 1/2 in, Chassis Width 16 in, Extended Height 23 1/2 in
