Hedland

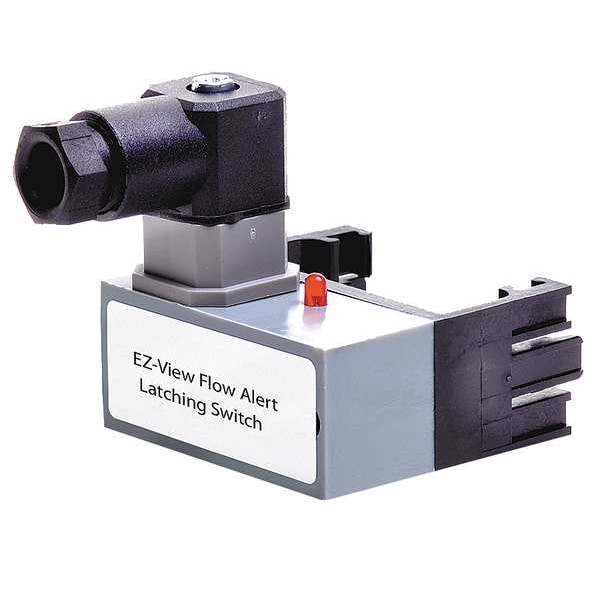

Flow Switch 10-30 VDC
Mfr # H526-005
Zoro # G0741237
Free Shipping & Returns
$206.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 10-30V DC
- For Use With 1/2 in to 1 in Connection Sensored Flowmeters
- NEMA Rating 12 and 13 (IP65)
- Min. Current 25 mA maximum
- Type DC Latching
Product Information
- Brand Hedland
- MFR # H526-005
- Zoro # G0741237
- Country of Origin United States
- Category Level Switches
Details
Voltage | 10-30V DC |
For Use With | 1/2 in to 1 in Connection Sensored Flowmeters |
NEMA Rating | 12 and 13 (IP65) |
Min. Current | 25 mA maximum |
Item | Flow Switch |
Type | DC Latching |
Operating Temp. (F) | 33 to 158 |
Agency Compliance | CE Certified |
Contact Ratings | 1A @ 30 V DC, 0.5 @ 125V AC Resistive Load |
Connector | 4-Pin (Protection Class IP65) |
Switch Enclosure | NEMA 12, NEMA 13 |
Accessory Type | Flow Switch |
Media Temperature - Maximum | 158 Degrees F |
Switch Position | Normally Open |
Connection Type | NPT |
Set Point Configuration | Adjustable |
Flow Switch Type | Paddle |
Frequency | 50 Hz, 60 Hz |
Housing Material | Polycarbonate |
Contact Rating (DC) | 1 A @ 30V |
Media Temperature - Minimum | 32 Degrees F |
Contact Rating (AC) | 0.5 A @ 125V |
Description
Flow Switch, Connection Type NPT, Contact Rating (AC) 0.5 A @ 125V, Contact Rating (DC) 1 A @ 30V, Flow Switch Type Paddle, Frequency 50 Hz, 60 Hz, Housing Material Polycarbonate, Media Temperature - Maximum 158 Degrees F, Media Temperature - Minimum 32 Degrees F, Set Point Configuration Adjustable, Switch Enclosure NEMA 12, NEMA 13, Switch Position Normally Open
