Shop All Pipe Hangers
Hap System

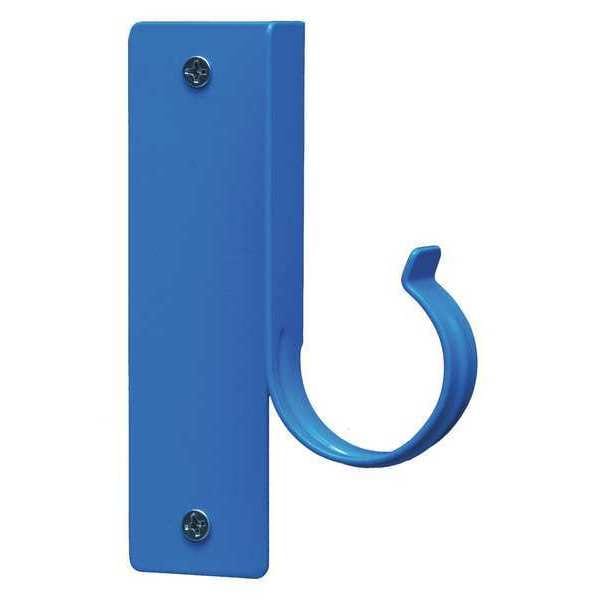

Pipe Hanger, 27/32" H, 1-1/4" Tube Size
Mfr # PL-1111-B5
Zoro # G7679975
Sold in multiples of 2 for $8.90
$8.90
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width (In.) 3 27/64 in
- Description/Special Features Bracket Fits 1-1/4 in PVC Pipe,1-1/2 in Copper Tube
- Flange Width (In.) 1 3/8 in
- Material Powder Coated Steel
- Width 3-27/64"
Product Information
- Brand Hap System
- MFR # PL-1111-B5
- Zoro # G7679975
- UPC # 810028450097
- Country of Origin China
- Category Pipe Hangers
Dimensions
Width (In.) | 3 27/64 in |
Flange Width (In.) | 1 3/8 in |
Width | 3-27/64" |
Height (In.) | 27/32 in |
Pipe Size (In.) | 1 1/4 in |
Length (In.) | 5 in |
Tube Size (In.) | 1 1/2 in |
Fits Tube Size | 1 1/2 in |
For Maximum Outside Diameter | 1 1/2 in |
For Copper Tube Size | 1 1/2 in |
Mounting Hole Diameter | 0.25 in |
Overall Height | 7/8 in |
Overall Length | 5 in |
For Pipe Size | 1 1/4 in |
For Minimum Outside Diameter | 1 1/4 in |
Overall Width | 4 in |
Description
Pipe Hanger, Clamp Material Steel, Clamp Material Finish Powder Coated, Cushion Material Not Applicable, For Copper Tube Size 1 1/2 in, For Insulation Thickness 1 1/4 in, For Maximum Outside Diameter 1 1/2 in, For Minimum Outside Diameter 1 1/4 in, For Pipe Size 1 1/4 in, For Strut Channel Width Not Applicable, Includes Condensate Drain No, Includes Mounting Hardware No, Installed Height Not Applicable, Load Capacity 50 lb, Maximum Operating Temperature 200 Degrees F
