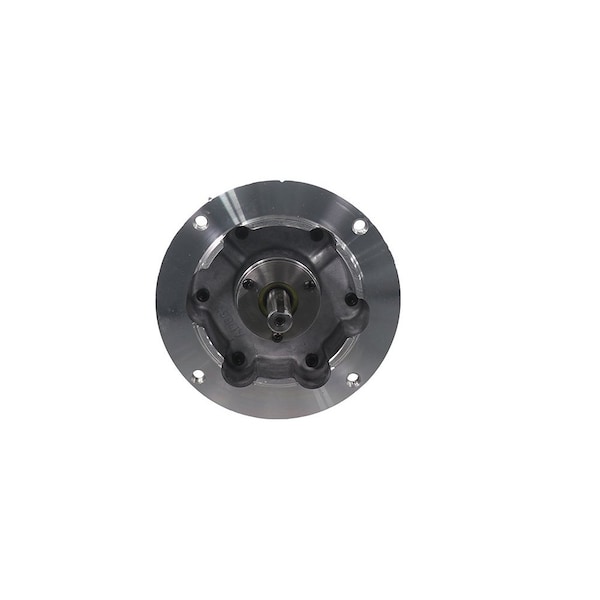

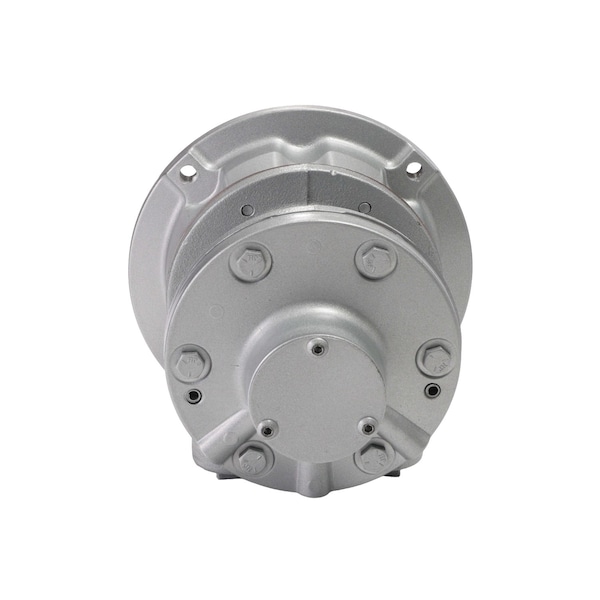

Stock 24/Skid 6Am-Nrv-22A Air Motor
Mfr # 6AM-NRV-22A
Zoro # G0602449
original price:
$882.88
19% off
new price: $710.99
/ea
Free Shipping & Returns
$710.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design AIR
- Rotation CW/CCW
- Overall Length 8 1/4 in
- Shaft Length 2 in
- Length Less Shaft 6 23/100 in
Product Information
- Brand Gast
- MFR # 6AM-NRV-22A
- Zoro # G0602449
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 8 1/4 in |
Shaft Length | 2 in |
Length Less Shaft | 6 23/100 in |
Manufacturers Warranty Length | 1 yr |
Keyway Depth | 1/8 in |
Keyway Width | 1/8 in |
Inlet Size | 1/2 in |
Mount Hole Center-to-Center Width | 5 7/8 in |
Mount Hole Center-to-Center Length | 5 7/8 in |
Overall Height | 6 1/2 in |
Keyway Length | 1 5/8 in |
Overall Width | 6 1/2 in |
Shaft Diameter | 5/8 in |
Outside Diameter | 6 1/2 in |
Description
Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 130 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade C1137OR C1141, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 21 lb, Housing Material Grade G2500, Housing Material Finish Painted
