Shop All Air Motors
Gast

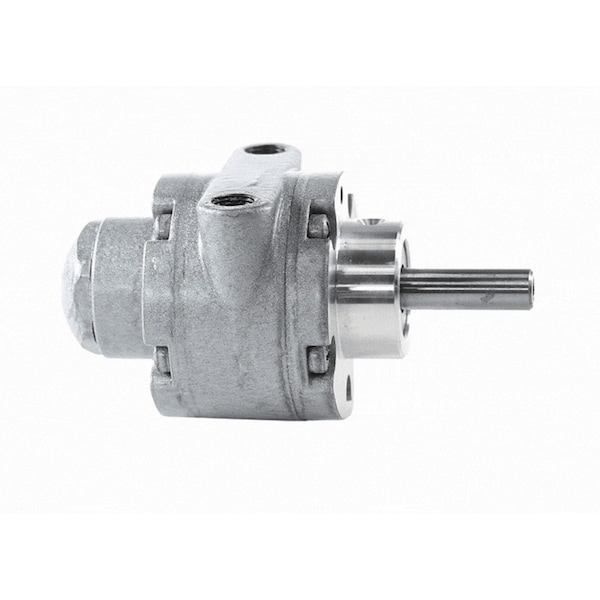

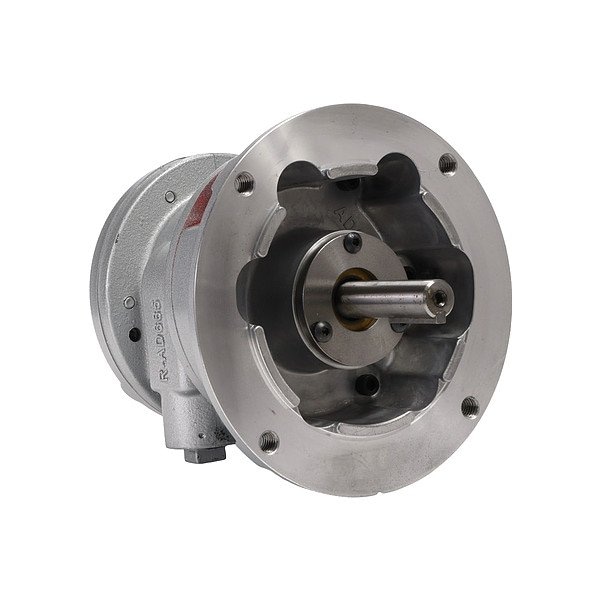

Stock 24/Skid 6Am-Nrv-11A Air Motor

original price: $665.65
7% off
new price: $615.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CW/CCW
  • Overall Length 8 1/4 in
  • Length Less Shaft 6 23/100 in
  • Standards ATEX
See all product information

Product Information

  • Brand Gast
  • MFR # 6AM-NRV-11A
  • Zoro # G0602485
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 8 1/4 in
Length Less Shaft 6 23/100 in
Shaft Length 2 in
Keyway Width 1/8 in
Keyway Length 1 5/8 in
Shaft Diameter 5/8 in
Overall Height 6 1/2 in
Inlet Size 1/2 in
Keyway Depth 1/8 in
Outside Diameter 6 1/2 in
Overall Width 6 1/2 in
Manufacturers Warranty Length 1 yr
Mount Hole Center-to-Center Width 5 7/8 in
Mount Hole Center-to-Center Length 5 7/8 in

Description

Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 130 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade C1137OR C1141, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 21 lb, Housing Material Grade G2500, Housing Material Finish Painted
