Shop All Air Motors
Gast

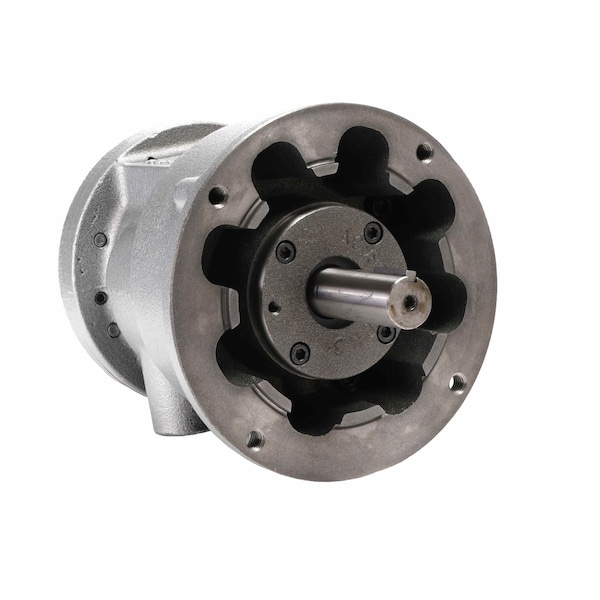

Stock 12/Skid 8Am-Nrv-32A Air Motor
Mfr # 8AM-NRV-32A
Zoro # G0602388
Free Shipping & Returns
$1,081.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design AIR
- Rotation CW/CCW
- Overall Length 9 1/2 in
- Length Less Shaft 7 21/50 in
- Shaft Length 2 1/8 in
Product Information
- Brand Gast
- MFR # 8AM-NRV-32A
- Zoro # G0602388
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 9 1/2 in |
Length Less Shaft | 7 21/50 in |
Shaft Length | 2 1/8 in |
Overall Height | 6 1/2 in |
Overall Width | 6 1/2 in |
Outside Diameter | 6 1/2 in |
Keyway Depth | 1/8 in |
Manufacturers Warranty Length | 1 yr |
Shaft Diameter | 7/8 in |
Keyway Length | 1 5/8 in |
Keyway Width | 1/8 in |
Inlet Size | 1/2 in |
Mount Hole Center-to-Center Width | 5 7/8 in |
Mount Hole Center-to-Center Length | 5 7/8 in |
Description
Air Motor, Output Power @ Maximum Speed 5 hp, Maximum Torque 132 in-lb, No Load Speed 2,500 RPM, Maximum Flow Rate 175 cfm, Shaft Diameter 7/8 in, Shaft Length 2 1/8 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade Not Applicable, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 28 lb, Housing Material Grade G2500, Housing Material Finish Painted
