Shop All Diaphragm Compressors & Vacuum Pumps
Gast

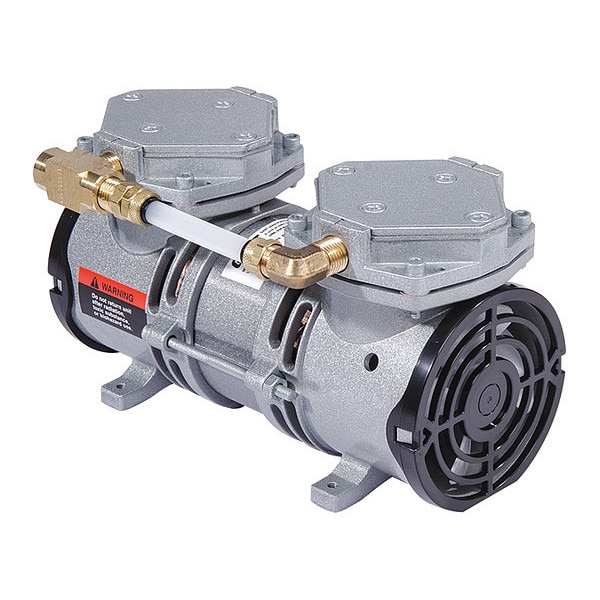

Model Maa-V109-Hb Diaphragm Pump
Mfr # MAA-V109-HB
Zoro # G1176169
product price: $654.99
/ea
Free Shipping & Returns
$654.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Compressor Type Diaphragm
- Voltage 110/115V AC
- Inlet Size 1/4 in
- Outlet Size 1/4 in
- Overall Width 4.68 in
Product Information
- Brand Gast
- MFR # MAA-V109-HB
- Zoro # G1176169
- Country of Origin United States
- Category Diaphragm Compressors & Vacuum Pumps
Dimensions
Inlet Size | 1/4 in |
Outlet Size | 1/4 in |
Overall Width | 4.68 in |
Overall Height | 4.77 in |
Overall Length | 8.47 in |
Details
Item | Compressor/Vacuum Pump |
Compressor Type | Diaphragm |
Voltage | 110/115V AC |
Inlet Connection Type | NPT |
Flow Rate @ 0 psi @ 50 Hz | 0.35 cfm |
Flow Rate @ 0 psi | 0.4 cfm |
Outlet Connection Type | NPT |
Maximum Operating Temperature | 104 Degrees F |
Maximum Continuous Pressure | 50 psi |
Maximum Vacuum | 28.5 in Hg |
Output Power | 1/16 hp |
Minimum Operating Temperature | 41 Degrees F |
Weight | 8 lb |
Sound Level | 70 dBA |
Pump Type | Diaphragm |
Maximum Intermittent Pressure | 50 psi |
Maximum Flow Rate | 0.4 cfm @ 0 psi |
Description
Compressor/Vacuum Pump, Output Power 1/16 hp, Voltage 110/115V AC, Maximum Vacuum 28.5 in Hg, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Flow Rate 0.4 cfm @ 0 psi, Inlet Size 1/4 in, Inlet Connection Type NPT, Outlet Size 1/4 in, Outlet Connection Type NPT, Compressor Type Diaphragm
