Shop All Round Dies
Garant

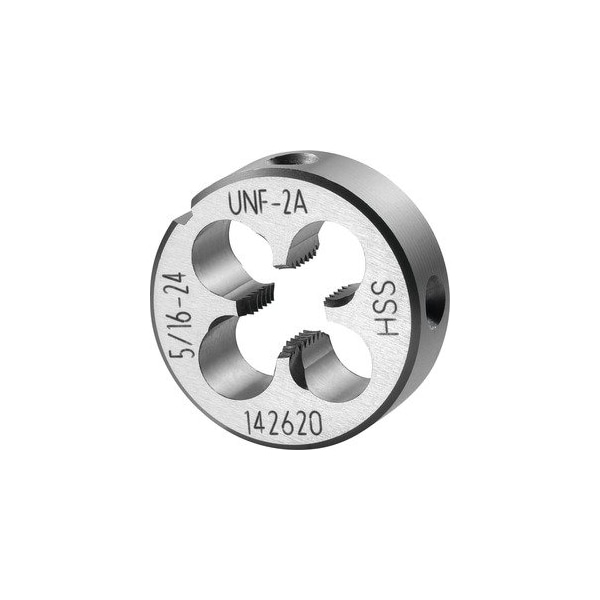

Round Die, HSS, 5/16-24

product price: $37.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Die Shape Round
  • Thread Type UNF Metric
  • Die Thread Size 5/16"-24
  • Die Material High Speed Steel
  • Thread Direction right-hand
See all product information

Product Information

Dimensions

Die Thread Size 5/16"-24
Outside Dia. (In.) 25 mm
Tap Thread Size 5/16/2024
Height 9 mm
Thread Size 5/16-24 UNF
Thread Dia. 7.94 mm

Details

Item Die
Die Shape Round
Thread Type UNF Metric
Die Material High Speed Steel
Thread Direction right-hand
Standards EN 22568
Threads per in. 24
Tolerance Class 2A
Flank Angle 60°

Description

Round Die, HSS, 5/16-24. Version: Closed- pre-slit form- with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For UNF uniform fine threads ASME - B1.1. Tolerance class: 2A Threads per inch: 24 Thread Dia: 7.94 mm External Dia: 25 mm Height: 9 mm
