Shop All Current Sensing Relays
Functional Devices-Rib

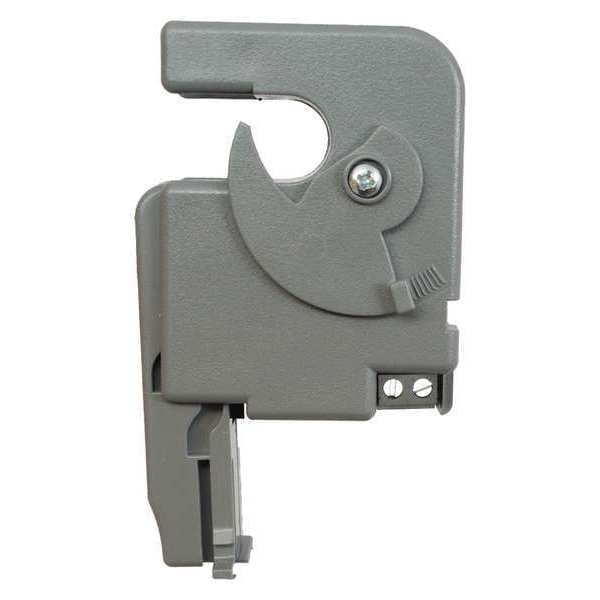

Split Core, Adj Current Switch, .75-150 A
Mfr # RIBXG21TA
Zoro # G0394149
product price: $58.79
/ea
$58.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 2
- Type Split Core
- LED 1 Over Threshold
- Threshold Adjustable
- Maximum Switching Current 1 Amp AC
Product Information
- Brand Functional Devices-Rib
- MFR # RIBXG21TA
- Zoro # G0394149
- Country of Origin United States
- Category Current Sensing Relays
Dimensions
Width | 2 |
Details
Item - Relay | Current Sensing Relay |
Item | Split Core,Adj Current Switch,.75-150 A |
Type | Split Core |
LED 1 | Over Threshold |
Threshold | Adjustable |
Maximum Switching Current | 1 Amp AC |
Humidity Range | 5 to 95% (noncondensing) |
Sensing Range | .75-150 Amps AC |
LED 2 | Under Threshold |
Sensor Contact Status | Monitored current below threshold: Open Monitored current above threshold: Closed |
Switching Voltage Range | 120-277 Vac |
Temperature Derating | 1 Amp up to 50° C, 0.5 Amp up to 60° C |
Operating Temperature | -30 to 140° F |
Sensor Contact Type | Solid State Switch SPST |
Sensor Contact Termination | Terminal Strip, Accepts #14-22 AWG Wire |
Max Sense Voltage | 600 Vac |
Mounting/ Installation | Unit can be secured using the supplied Mounting Tab, the adjustable Wire Clamp, or both |
Approvals | UL Listed, UL916, C-UL, CE |
Series | RIBXG21 Series |
Description
Split Core,Adj Current Switch,.75-150 A
