Shop All General Purpose Relays
Functional Devices-Rib

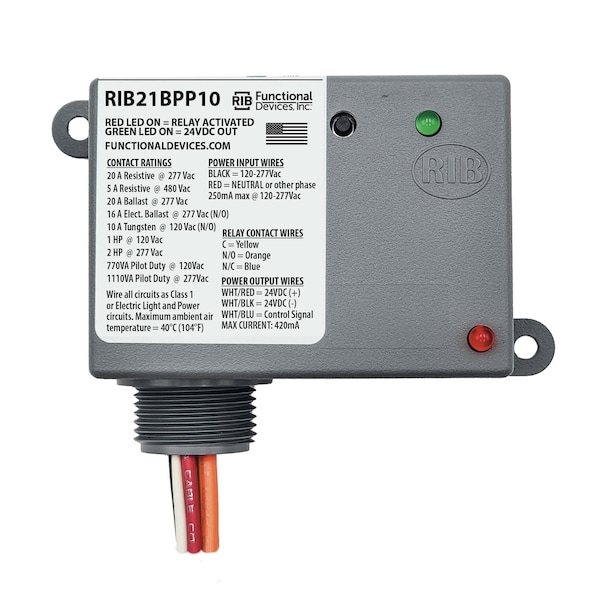

Power Pack, 20 Amp SPDT + Momentary Push Button Override Switch, 120-2
Mfr # RIB21BPP10
Zoro # G1807419
product price: $114.99
/ea
Free Shipping & Returns
$114.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 120-277Vac
- Width 3.2
- Amps 20 Amp
- Dimensions 2.30" x 3.20" x 1.80" with .75" NPT Nipple
- Length 2.3
Product Information
- Brand Functional Devices-Rib
- MFR # RIB21BPP10
- Zoro # G1807419
- Country of Origin United States
- Category General Purpose Relays
Dimensions
| Width | 3.2 |
| Dimensions | 2.30" x 3.20" x 1.80" with .75" NPT Nipple |
| Length | 2.3 |
Details
| Voltage | 120-277Vac |
| Amps | 20 Amp |
| Item | Power Pack |
| Color | Gray |
| Power Status | Green LED On - 24Vdc out |
| Wires | 16", 600V Rated |
| Approvals | UL Listed, UL916, C-UL, CE |
| Operate Time | 1.8 Seconds |
| Relay Status | Red LED On - Activated |
| Operating Temperature | -30 to 104° F |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Contact Ratings | 20 Amp Resistive @ 277 Vac 5 Amp Resistive @ 480 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac (N/C) 1100 VA Pilot Duty @ 277 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Power Input | 250 mA @ 120 -277 Vac |
| No. of Relays & Contact Type | One (1) SPDT Continuous Duty Coil |
| Gold Flash | No |
| Momentary Override | Yes |
| DC Output | 24 Vdc @ 420mA, Class 2 |
| Humidity Range | 5 to 95% (noncondensing) |
Description
Power Pack, 20 Amp SPDT + Momentary Push Button Override Switch, 120-277 Vac Universal Voltage Power Input, 10 Watt Class 2 Output, NEMA 1 Housing
