Functional Devices-Rib

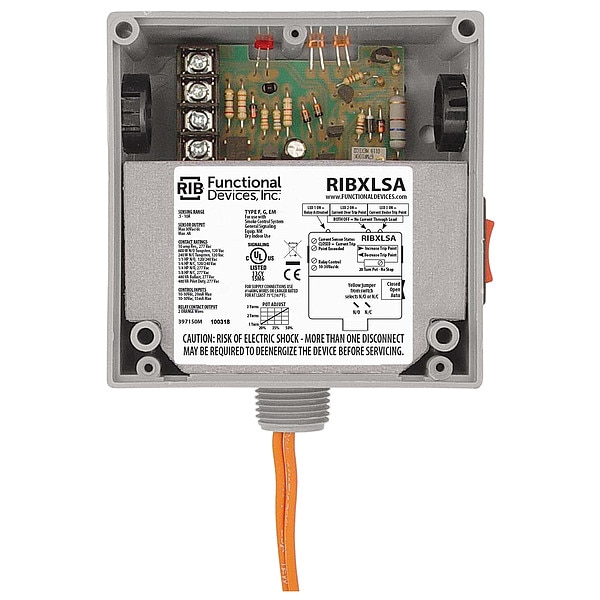

Enclosed Relay/Current Switch, Adj., 10A

product price: $41.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Internal w/ contact status
  • Width 4
  • Wire Length 16", 600V Rated
  • Housing Rating UL Accepted for Use in Plenum, NEMA 1
  • Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
See all product information

Product Information

Dimensions

Width 4
Wire Length 16", 600V Rated
Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple

Details

Item Enclosed Relay/Current Switch,Adj.,10A
Type Internal w/ contact status
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Sensor Output Solid State Contact 30 Vac/dc, 0.4 Amp
Contact Ratings 10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Approvals UL Listed, UL916, C-UL, CE
Humidity Range 5 to 95% (noncondensing)
Override Switch Yes
Coil Voltage Input 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Gold Flash Yes
Sensing Range .50-10 Amps
Relay Status Red LED On - Activated
Operating Temperature -30 to 140° F
Threshold Adjustable
Operate Time 20ms
Expected Relay Life 10 million cycles minimum mechanical
No. of Relays & Contact Type One (1) SPST Continuous Duty Coil
Resistive 10 Amp

Description

Enclosed Relay/Current Switch,Adj.,10A
