Shop All Pre-wired Enclosed Relays
Functional Devices-Rib

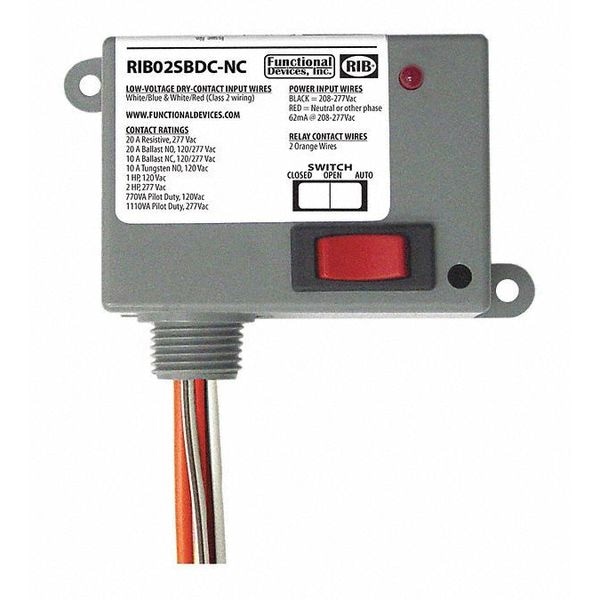

Enclosed Relay, 20A, SPST-N/C Override

product price: $35.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 120VAC
  • Height 1.8
  • Dimensions 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
  • Width 3.2
  • Operate Time 1.8 Seconds
See all product information

Product Information

Dimensions

Height 1.8
Dimensions 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
Width 3.2

Details

Coil Volts 120VAC
Item Enclosd Rly,20A,SPST-N/C,Override,120VAC
Operate Time 1.8 Seconds
Contact Ratings 20 Amp Resistive @ 277 Vac 1110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 20 Amp Ballast @ 277 Vac (N/O) 10 Amp Ballast @ 277 Vac (N/C) Not rated for Electronic Ballast 10 Amp Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac
Expected Relay Life 10 million cycles minimum mechanical
Gold Flash No
Override Switch Yes
Power Input 62 mA @ 208-277 Vac (RIB02SBDC)
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Switch Position Normally Closed
Operating Temperature -30 to 140° F
Humidity Range 5 to 95% (noncondensing)
No. of Relays & Contact Type One (1) SPST Continuous Duty Coil
Relay Status LED On - Activated
Wires 16", 600V Rated
Approvals UL Listed, UL916, C-UL, CE

Description

Dry Contact Relay, 20 Amp SPST-N/C + Override, Class 2 Dry Contact Input, 208-277 Vac Power Input, NEMA 1 Housing
