Shop All Flow Rate Sensors
Flowline

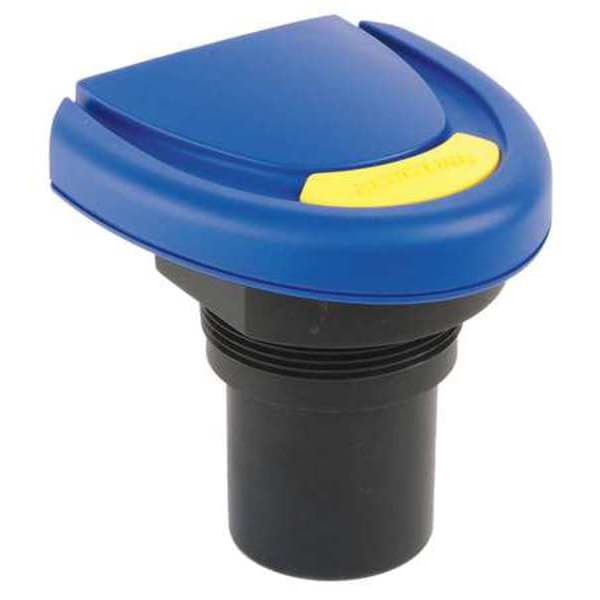

Ultrasonic Level Transmitter, 32.8 Ft
Mfr # LU29-01
Zoro # G3915222
product price: $1,130.99
/ea
Free Shipping & Returns
$1,130.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Height 3.4 in
- Mounting 2 in NPT
- Width 4.0 in
- Overall Length 4.1 in
- Material PVDF
Product Information
- Brand Flowline
- MFR # LU29-01
- Zoro # G3915222
- UPC # 634746301420
- Country of Origin United States
- Category Flow Rate Sensors
Dimensions
Height | 3.4 in |
Width | 4.0 in |
Overall Length | 4.1 in |
Beam Width | 3 in |
Overall Width | 4 in |
Overall Height | 3.4 in |
Connection Size | 2 in |
Overall Diameter | 4 1/8 in |
Antenna Diameter | 3 3/8 in |
Description
Noncontact Ultrasonic Level Sensor, For Media Type Corrosive Liquid, Sticky/Waste Liquid, Antenna Diameter 3 3/8 in, Range 393.6 in, Connection Size 2 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 24V DC, Dead Band 8 in, Operating Frequency 50 kHz, Spatial Resolution 0.079 in, Beam Width 3 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -4 Degrees F, Media Temperature - Maximum 140 Degrees F, Output Wire Configuration 2-Wire
