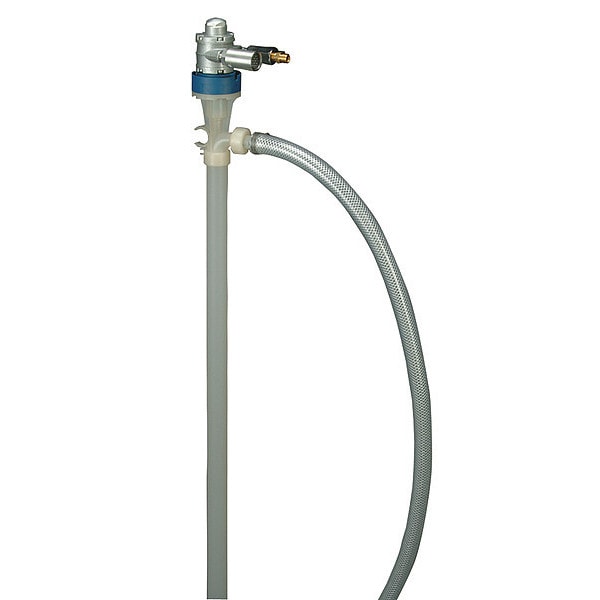

Drum Pump, 1/2 HP, 3/4 In Outlet, 47In OAL

Mfr # EFV-40 & S4 Kit
Zoro # G1248676

$628.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Suction Tube Length 40 in
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Hydrochloric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid, Trichlorethylene, Water
For Container Size 55 gal
Max. Flow Rate 15 gpm
Max. Viscosity 300 cps

See all product information

Product Information

Brand Finish Thompson
MFR # EFV-40 & S4 Kit
Zoro # G1248676
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	40 in
For Container Size	55 gal
Air Inlet Size	1/4 in MNPT
Inlet Size	1-5/16"
Discharge Tube Outlet ID Size	3/4"
Discharge Tube Outlet OD Size	1"
Manufacturers Warranty Length	1 yr.
Outlet Size	3/4" Barb
Height	40"
Hose Inside Dia.	3/4 in
Hose Length	60 in
Hose Outside Dia.	1 in
Overall Length	46 7/8 in
Air Outlet Size	1/4 in
Height Above Container	6 7/8 in

Details

For Media Type	Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Hydrochloric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid, Trichlorethylene, Water
Max. Flow Rate	15 gpm
Max. Viscosity	300 cps
Wetted Materials	Alloy 625, FKM, Polypropylene, PTFE, PVC, PVDF
Suction Tube ID	1 3/8 in
Max. Fluid Temp.	160 Degrees F
Discharge Tube Outlet ID	3/4 in
Food Grade	No
Includes	Clamp, Hose, Motor, Pump
Suction Tube OD	1 3/8 in
Metered	No
Discharge Tube Outlet OD	1 in
Diesel Exhaust Fluid Compatible	No
Includes Suction Tube	Yes
Runs Dry	No
Motor Type	Air
Max. GPM for Oil	5
Adapter Type	Optional 2" IPS Thread 107428
For Use With	Corrosive Chemicals, Sodium Hypochlorite-Chlorine Bleach
Self-Priming	Yes
Item	Air Operated Drum Pump
Max. GPM for Water	15
Max. Liquid Temp.	160 Degrees F
Discharge Tubing Material	PVC
Max. Head	5 to 17 ft.
Max. Flow GPM	15 gpm
Application	For Transferring Antifreeze Solvents, Thinners, Automotive Additives, industrial Chemicals, Oil Based Fluids and Other Non Corrosive Fluids
Housing Material	Polypropylene / PVDF
Adapter Material	Polypropylene
Max. Air Inlet (PSI)	7
GPM	5-15
Seal Material	FKM
Thermal Protection	No
Suction Tube Material	Polypropylene
Motor RPM	11,000 RPM
Includes Spout	No
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Automatic Transmission Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Herbicides, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Trichlorethylene (50%)
Min. Fluid Temp.	0 Degrees F
Duty Cycle	Continuous
Pump Connection OD	1 5/16 in
Pump Connection ID	1 5/16 in
Motor HP	1/2 hp
Max. Air Pressure	40 psi
Includes Bung Adapter	No
Housing Material - Pumps	Polypropylene, PVDF
Hose Tube Material	PVC
Includes Nozzle	No
Power Source	Air
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Biodiesel, Brake Fluid, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (Concentrated Solution), Paint Thinner, Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Turpentine, Windshield Washer Fluid, Xylene
Variable Speed	Yes
Max. Oil Flow	5 gpm
Max. Head Pressure	7.4 psi
Min. Air Pressure	40 psi
Noise Level	78 db
Includes Discharge Hose	Yes
Discharge Connection Type	Hose Barb
Series	EF
For Container Type	Drum
Grease	NT
Gear Lube	NT
Explosion Proof	Yes
Max. Head - Pumps	17 ft

Description

Air Operated Drum Pump, Max. Air Pressure 40 psi, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 46 7/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 db, Max. Viscosity 300 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No, Includes Spout No
