Compare

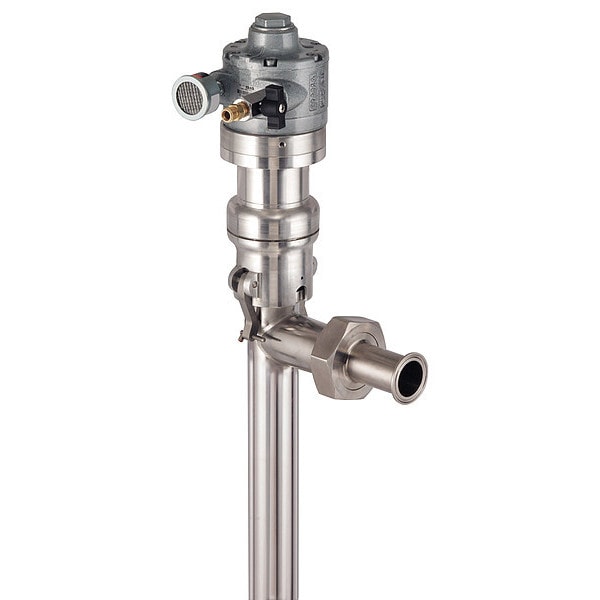

Air Operated Drum Pump

Mfr # HVDP & M66
Zoro # G0463876

$4,915.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Suction Tube Length 40 in
Action Type Piston
For Media Type Acetic Acid, Ammonia, Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Citric Acid, Cyclohexane, Diesel Fuel, E85, Ethylene Glycol, Formaldehyde, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Lithium Grease, Methanol, Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Trichlorethylene, Turpentine, Water, Windshield Washer Fluid
For Container Size 55 gal
Max. Flow Rate 7 gpm

See all product information

Product Information

Brand Finish Thompson
MFR # HVDP & M66
Zoro # G0463876
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	40 in
For Container Size	55 gal
Air Inlet Size	1/4 in MNPT
Outlet Size	1-1/2" Tri-Clamp
Overall Length	57 7/8 in
Discharge Tube Outlet ID Size	1-1/2"
Suction Tube Outlet O.D. Size	2"
Inlet Size	2"
Manufacturers Warranty Length	1 yr.
Air Outlet Size	1/4 in

Details

Action Type	Piston
For Media Type	Acetic Acid, Ammonia, Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Citric Acid, Cyclohexane, Diesel Fuel, E85, Ethylene Glycol, Formaldehyde, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Lithium Grease, Methanol, Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Trichlorethylene, Turpentine, Water, Windshield Washer Fluid
Max. Flow Rate	7 gpm
Max. Viscosity	100,000 cps
Wetted Materials	316 Stainless Steel, Buna-N
Suction Tube ID	2 in
Max. Fluid Temp.	180 Degrees F
Discharge Tube Outlet ID	1 1/2 in
Food Grade	No
Includes	Motor and Pump
Suction Tube OD	2 in
Metered	No
Discharge Tube Outlet OD	2 in
Diesel Exhaust Fluid Compatible	No
Includes Suction Tube	Yes
Runs Dry	No
Max. Pressure	130 psi
Max. Head	300 ft.
Item	Air Operated Drum Pump
Housing Material	316 Stainless Steel
Agency Compliance	FDA Compliant
DEF Compatible	No
Motor Type	Air
Type	Motor and Tube
Max. GPM for Water	7
For Use With	Colorants., Food Ingredients, Pharmaceuticals
Seal Material	Buna-N, Carbon, Ceramic
Max. Liquid Temp.	180F
GPM	2 to 7
Standards	CSA Certified
Adapter Type	Bung
Max. GPM for Oil	7 @ 100 cps
Adapter Material	316 Stainless Steel
Max. Air Inlet (PSI)	130
Self-Priming	Yes
Thermal Protection	No
Motor RPM	3,000 RPM
Suction Tube Material	316 Stainless Steel
Includes Spout	No
Pump Connection OD	2 in
Not Recommended Chemicals	Acetic Acid 80%, Acetone, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, DEF, Ethyl (Ethanol), Ethyl Acetate, Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Xylene
Noise Level	90 db
Series	HVDP
Variable Speed	Yes
Max. Oil Flow	7 gpm @ 100 cps
Max. Head Pressure	120 psi
Includes Nozzle	No
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Ammonia (Liquids), Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl (Methanol), Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Stoddard Solvent (Mineral Spirits), Trichlorethylene (50%), Turpentine, Windshield Washer Fluid
Min. Fluid Temp.	-20 Degrees F
Housing Material - Pumps	316 Stainless Steel
Motor HP	1 1/2 hp
Duty Cycle	Continuous
Discharge Connection Type	Tri-Clamp
Max. Air Pressure	100 psi
Includes Bung Adapter	No
Min. Air Pressure	100 psi
Power Source	Air
Pump Connection ID	2 in
For Container Type	Drum
Includes Discharge Hose	No
Explosion Proof	Yes
Gear Lube	NT
Max. Head - Pumps	300 ft
Grease	NT
Max. Outlet Pressure	130 psi

Description

Air Operated Drum Pump, Max. Air Pressure 100 psi, Suction Tube Material 316 Stainless Steel, Self-Priming Yes, Overall Length 57 7/8 in, Explosion Proof Yes, Discharge Connection Type Tri-Clamp, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Motor HP 1 1/2 hp, Variable Speed Yes, Includes Discharge Hose No, Noise Level 90 db, Max. Viscosity 100,000 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No, Includes Spout No, Runs Dry No

Restrictions

*** This is a restricted item. It cannot be used in the USA for potable water applications.
