Shop All 3.3 Inch Diameter Motors
Fasco

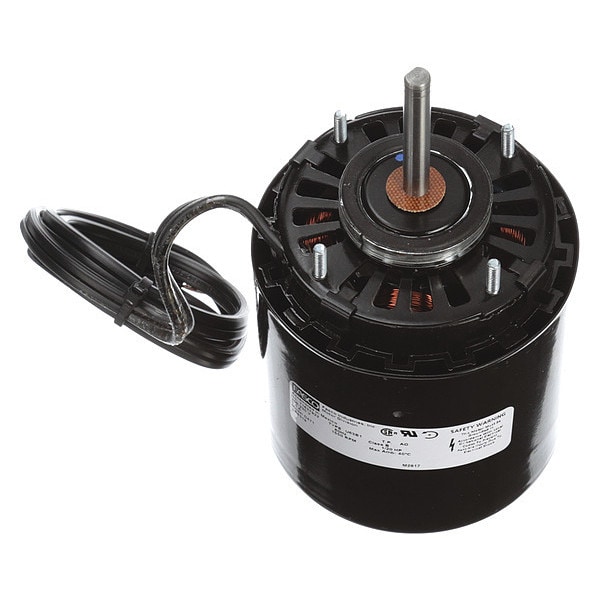

HVAC Motor, OAO, 1/20 HP, 1550 rpm, Stud

product price: $146.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 208-230V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Body Dia. 3 5/16 in
Shaft Dia. 5/16 in
Shaft Length 2 1/2 in
Cord Length 35 in
Length Less Shaft 5 1/16 in
Stud Size #8-32
Overall Length 7 3/16 in
Lead Length 33 in
Bolt Circle Dia. 2 7/8 in

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.1 A, 3.3 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 33 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Number of Shafts 1
