Shop All 3.3 Inch Diameter Motors
Fasco

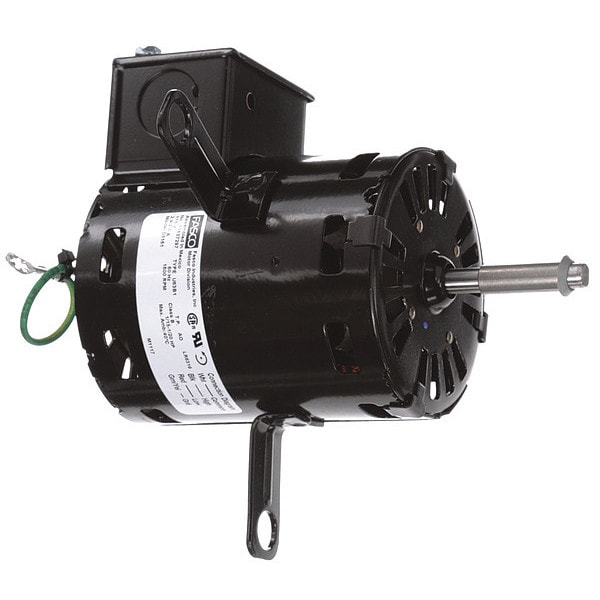

HVAC 3.3 In Motor, 1/15-1/20 HP, 115V, CCW
Mfr # D1161
Zoro # G6099003
product price: $154.99
/ea
Free Shipping & Returns
$154.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 115V AC
- Nameplate RPM 1,600
- Motor Enclosure Design Open Air-Over
- Number of Speeds 2
- HP 1/15, 1/25
Product Information
- Brand Fasco
- MFR # D1161
- Zoro # G6099003
- UPC # 663001023562
- Country of Origin Mexico
- Category 3.3 Inch Diameter Motors
Dimensions
Shaft Dia. | 5/16 in |
Length Less Shaft | 4 3/4 in |
Shaft Length | 2 in |
Body Dia. | 3 5/16 in |
Bolt Circle Dia. | 1/2 in |
Overall Length | 6 9/16 in |
Description
OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/15, 1/25 HP, Nameplate RPM 1,600, No. of Speeds 2, Voltage 115V AC, Full Load Amps 2.9/2.2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug, Motor Mounting Position All Angle, Number of Shafts 1
