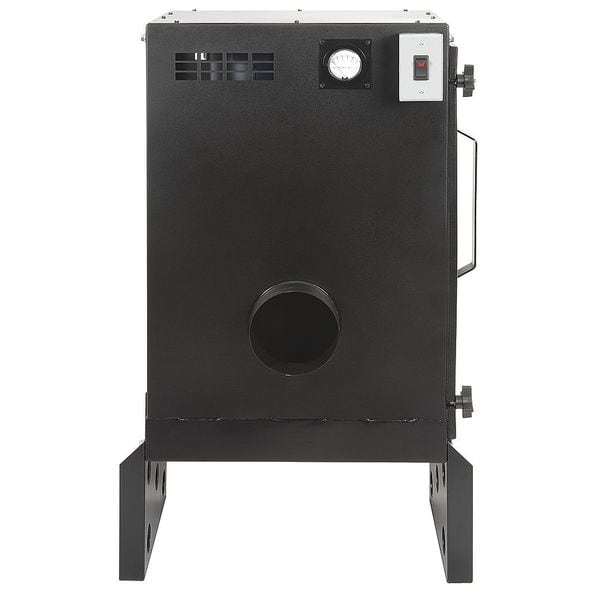

Oil Mist Collector, Ceiling, 600 cfm

Name: Oil Mist Collector, Ceiling, 600 cfm
Brand: Extract-All
SKU: G2684617
Price: 4669.99 USD
Availability: InStock

$4,669.99

/ea

Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Free 30-Day Returns

Product Information

Width (In.)	20 in
Depth (In.)	13 1/4 in
Dia. (In.)	6 in
Cord Length (Ft.)	10
Height (In.)	27 in
Overall Dimensions - H x W x D	27 in x 20 in x 13-1/4 in
Overall Depth	13 1/4 in
Overall Width	20 in
Overall Height	27 in
Inlet Collar Diameter	6 in
Manufacturer Warranty Length	3 yr
Power Cord Length	10 ft

Item	Oil Mist Collector
Air Flow	600 cfm
Color	Black
Type	Oil Mist Collection System
Voltage	120V AC
Phase	1
Number of Speeds	1
Filter Efficiency (%)	95
Filter Rating (Microns)	1
Comes With	Drain Fitting, Mounting Brackets and Filter Gauge, Three-Stage Filter
Mount	Ceiling or Machine
MERV	11
Sound Level dBA	76
Finish	Baked Painted
Air Flow (CFM)	600
Hz	60
Includes	3/4 hp Motor, Drain Assembly, Filter Gauge, Inlet Plenum with 6 in Diameter Collar, Mounting Brackets, Three-Stage Filtration
Amps AC	10
Filter Efficiency	95 %
Weight	135 lb
Housing Thickness	16 ga
Replacement Pre-Filter Manufacturer Model Number	RF-600-2
Amperage	10 A
Mounting Hardware Included	Standard/Reverse Brackets
Includes Mounting Hardware	Yes
Includes Drain Fitting	Yes
Housing Finish	Textured Baked Enamel
Air Cleaning Method	Direct Source Capture, Filtration
Housing Color	Black
Motor Horsepower	3/4 hp
Recommended Environments	Boring, Chuckers, CNC Machining, EDM Machining, Grinding, Machining, Metal Turing Centers, Milling, Parts Washing, Spraying, Wet Grinding
Replacement Primary Filter Manufacturer Model Number	RF-600-3
Filters Out	Oil, Smoke
Includes Pressure Gauge	Yes
Number of Stages	3
Filters Included	Pre-Filter
Filters Down To	1 micron
Housing Material	Galvanized Steel
Noise Level	63 dBA
Frequency	60 Hz

Oil Mist Collector, Air Cleaning Method Direct Source Capture, Filtration, Air Flow 600 cfm, Amperage 10 A
