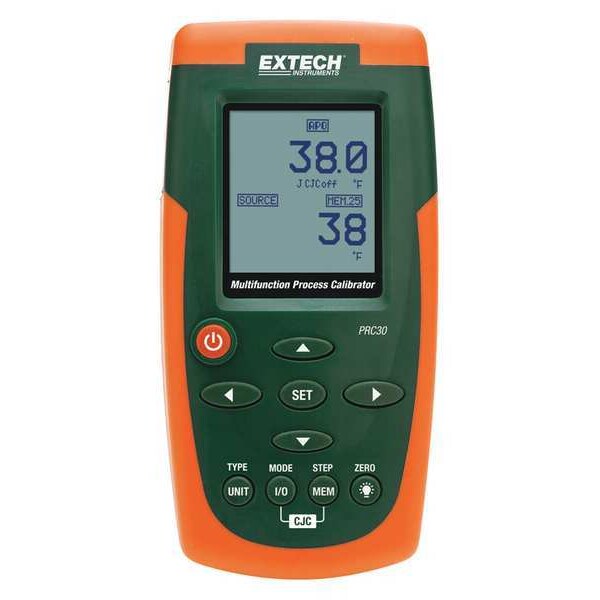

Temp Calibrator, to2498 Degrees F, NIST

Mfr # PRC30-NIST
Zoro # G8240784

$849.00

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Current Measurement Range 0 to 50mADC
Voltage Measurement Range 0 to 20V DC
Loop Supply Voltage 24V DC
Accuracy Dependent on Thermocouple Type

See all product information

Product Information

Brand Extech
MFR # PRC30-NIST
Zoro # G8240784
UPC #
793950710326
Country of Origin Taiwan, Province of China
Category Process Calibrators

Dimensions

Manufacturers Warranty Length	1 yr
Manufacturer Warranty Length	1 yr

Details

Promotion Restriction	Not eligible for promotion
Current Measurement Range	0 to 50mADC
Item	Handheld Temperature Calibrator
Voltage Measurement Range	0 to 20V DC
Loop Supply Voltage	24V DC
Accuracy	Dependent on Thermocouple Type
Thermocouple Type	J, K, T, C, E, N, R y S
Source Voltage	0 to 20V DC
Measurement Functions	Current, Temperature, Voltage
Source Current	0 to 24mADC
Thermocouple Temperature Range	-58 Degrees to 2498 Degrees F (Dependent on Thermocouple Type)
Powered By	(6) AA Batteries or 100 to 240V Universal AC Adapter
Display	Backlit LCD
Includes	100 to 240V Universal AC Adapter, Adapter, Batteries, Calibration Cable, Carrying Case
Max. Loop Current	24mADC
Source/Simulate	T, mV, mA
Calibration Certificate	NIST Traceable
Sensor Temperature Range	-184 Degrees to 752 Degrees F/-120 Degrees to 400 Degrees C (Type T), -58 Degrees to 1,382 Degrees F/-50 Degrees to 750 Degrees C (Type E), -58 Degrees to 1,832 Degrees F/-50 Degrees to 1,000 Degrees C (Type J), -58 Degrees to 2,498 Degrees F/-50 Degrees to 1,370 Degrees C (Type K), -58 Degrees to 2,732 Degrees F/-50 Degrees to 1,300 Degrees C (Type N), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type C), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type R), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type S)
Thermocouple Temperature Range F	-58 Degrees to 2,498 Degrees F
Accuracy - Source	+/-0.01% +1 Digit, +/-0.05% +2 Degrees F/1 Degrees C
Millivolt Range	-5 to 55mV
Auto Power Off	Yes
Data Hold	No
For Thermocouple Type	Type C, Type E, Type J, Type K, Type N, Type R, Type S, Type T
Millivolt Accuracy	+/-0.01% +1 Digit
Thermocouple Temperature Range C	-50 Degrees to 1,750 Degrees C
Probe Connection Type	Mini Thermocouple Connector, Standard Banana I/O Ports
Sensor Minimum Temperature C	0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
Accuracy - Measure	+/-0.01% +1 Digit, +/-0.05% +2 Degrees F/1 Degrees C
Temperature Range	-58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
Temperature Accuracy	+/-0.05% +2 Degrees F/1 Degrees C
Display Type	LCD
Includes NIST-Traceable Certificate	Yes
Sensor Type	Thermocouple
Display Functions	Degrees C/ Degrees F Switchable, Datalogging
Number of Digits	4
Sensor Maximum Temperature C	1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
Sensor Maximum Temperature F	3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
Calibration Details	Data at 0 Degrees C, 100 Degrees C, 500 Degrees C, 750 Degrees C, and 1,000 Degrees C
Sensor Minimum Temperature F	32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
Sensor Maximum Temperature °F	3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
Sensor Minimum Temperature °C	0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
Sensor Maximum Temperature °C	1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
Sensor Minimum Temperature °F	32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)

Description

Handheld Temperature Calibrator, Sensor Type Thermocouple, Data at 0 Degrees C, 100 Degrees C, 500 Degrees C, 750 Degrees C, and 1,000 Degrees C, Display Functions Degrees C/ Degrees F Switchable, Datalogging, Temperature Accuracy +/-0.05 Percent +2 Degrees F/1 Degrees C, -58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
