Euchner

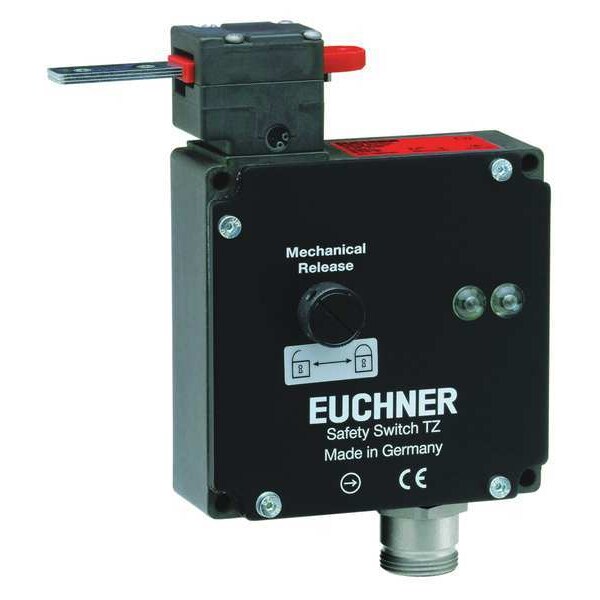

4NC Safety Interlock Switch IP 65
Mfr # TZ1LE024BHA-C1903
Zoro # G1890309
product price: $800.99
/ea
Free Shipping & Returns
$800.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Style Left and Top Opening, Solenoid Locking
- Series TZ
- Actuator Length 2.33 in
- AC Contact Rating 4 A @ 230 V
- DC Contact Rating 4 A @ 24 V
Product Information
- Brand Euchner
- MFR # TZ1LE024BHA-C1903
- Zoro # G1890309
- Country of Origin Germany
- Category Safety Interlock Switches
Dimensions
Actuator Length | 2.33 in |
Height | 5.9 in |
Width | 4.33 in |
Depth | 1.57 in |
Conduit Size | M20 |
Overall Depth | 1.57 in |
Overall Width | 4.33 in |
Overall Height | 5.9 in |
Description
Safety Interlock Switch, Left and Top Opening, Solenoid Locking, Contact Form 4NC, Actuator Length 2.33 in, AC Contact Rating 4 A @ 230 V, Series TZ, DC Contact Rating 4 A @ 24 V, Solenoid Voltage 24 V AC/DC, Height 5.9 in, Width 4.33 in, Depth 1.57 in, IP Rating IP65, Contact Material Silver, Conduit Size M20, Body Material Die Cast Alloy, Head Material Aluminum Die-Cast, Description/Special Features Left Hand Operation, Over Travel 4mm, Movement Horizontal, Operating Force 8 lb
