Shop All Magnetic Separators
Eriez

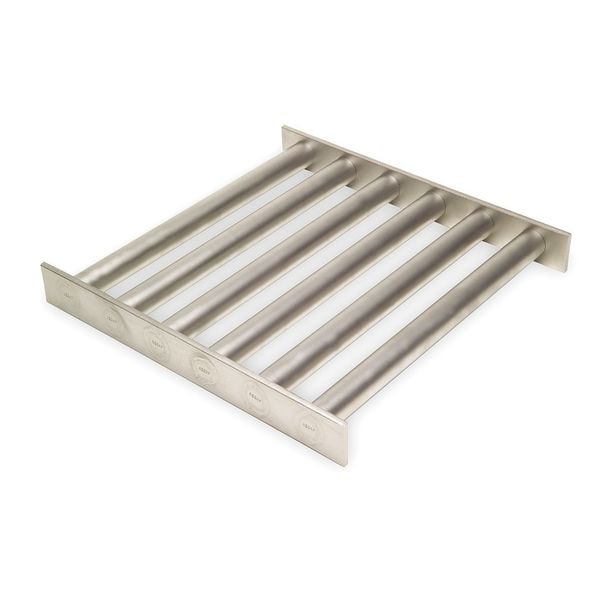

Magnetic Grate, Rare Earth, 14x14x1 1/2In
Mfr # 135683P
Zoro # G7240861
Free Shipping & Returns
$3,790.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Magnetic Separator Type Square Grate Magnet
- Primary Magnet Material Rare Earth
- Maximum Magnetic Pull Strength 80 oz
- Overall Length 14 in
- Magnetic Intensity 10,700 gauss
Product Information
- Brand Eriez
- MFR # 135683P
- Zoro # G7240861
- Country of Origin China
- Category Magnetic Separators
Dimensions
Overall Length | 14 in |
Overall Width | 14 in |
Overall Height | 1 1/2 in |
Width (In.) | 14 |
Length (In.) | 14 |
Height (In.) | 1-1/2 |
Details
Magnetic Separator Type | Square Grate Magnet |
Primary Magnet Material | Rare Earth |
Maximum Magnetic Pull Strength | 80 oz |
Magnetic Intensity | 10,700 gauss |
Grate Shape | Square |
Max. Operating Temp. | 150 Degrees F |
Intensity Range (Gauss) | 10,700 |
Temp. Range (F) | 0 Deg. to 150 Deg. |
Free Flowing Material | Powder or Granular |
Magnet Type | Rare Earth |
Frame Material | Stainless Steel |
Max. Pull on Contact | 80 Ounces At The Surface With 1/4" Diameter Steel Test Ball |
Type | Rectangular |
For Free Flowing Material Type | Dry Granular, Dry Powder |
Item | Grate Magnet |
Description
Grate Magnet, Maximum Magnetic Pull Strength 80 oz, Square, 14 in Overall Length, 14 in Overall Width, 1 1/2 in Overall Height, Rare Earth, Stainless Steel Frame Material
Restrictions
- Hazardous material
