Ericson

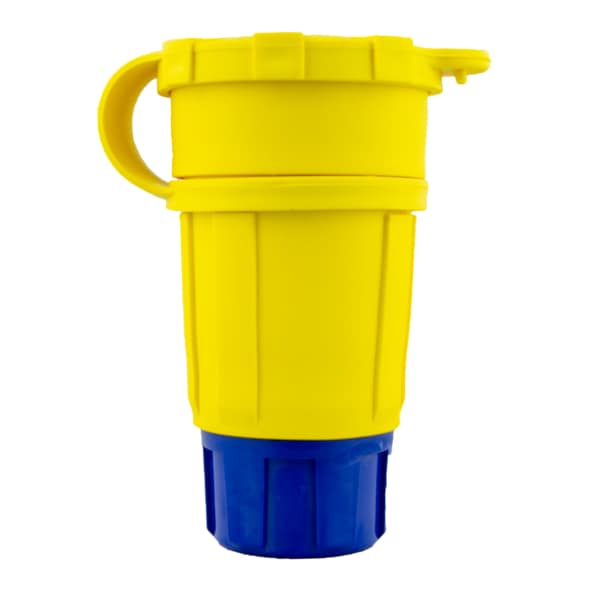

CONN 30A/250V 2P/3W L3-30R LCK BLD SUBM
Mfr # 2612-CW6P
Zoro # G9757700
product price: $70.95
/ea
$70.95
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Voltage 250V
- Color Yellow
- CSA CSA Certified to CSA C22.2 No.42, File 31943
- Sub Brand / Trademark Perma-Tite
- Device Type Connector
Product Information
- Brand Ericson
- MFR # 2612-CW6P
- Zoro # G9757700
- UPC # 782862825112
- Country of Origin United States
- Category Communication Cables
Details
Item | CONN 30A/250V 2P/3W L3-30R LCK BLD SUBM |
Voltage | 250V |
Color | Yellow |
CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
Sub Brand / Trademark | Perma-Tite |
Device Type | Connector |
Amps | 30 |
Case Qty | 27 |
UL | UL Listed to ANSI/UL 498, File E17740 |
Poles / Wires | 2P/3W |
Phase | 1 |
Environmental Rating | Watertight (IP69K) |
NEMA Configuration | NEMA L6-30 |
NSF | NSF/ANSI/3-A 14159-1 |
Blade Style | Locking |
Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
Description
CONN 30A/250V 2P/3W L3-30R LCK BLD SUBM
