Enerpac

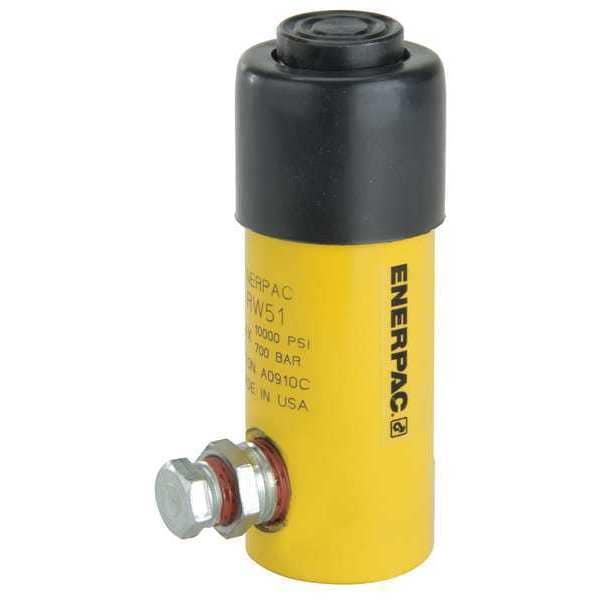

Universal Cylinder, 5 tons, 1in. Stroke L

product price: $433.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Thread Size 1/4"-20
  • Bolt Circle Dia. 1"
  • Outside Dia. 1.5 in
  • Center Hole Dia. 1 in
See all product information

Product Information

Dimensions

Thread Size 1/4"-20
Bolt Circle Dia. 1"
Outside Dia. 1.5 in
Center Hole Dia. 1 in
Plunger Dia. 1 in
Retracted Height 4.34 in
Extended Height 5.34 in
Plunger Thread Size 3/4"-16
Collar Thread Size 1-1/2"-16
Stroke Length 1 in
Base Bolt Circle Dia. 1 in
Nominal Stroke Length 1 in

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 5 ton, Max. Push Capacity 5 ton, Stroke Length 1 in, Nominal Stroke Length 1 in, Effective Push Area 0.99 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 0.99 cu in, Retracted Height 4.34 in, Extended Height 5.34 in, Outside Dia. 1.5 in, Plunger Dia. 1 in, Plunger Thread Size 3/4 In.-16, Collar Thread Size 1-1/2 In.-16, Base Bolt Circle Dia. 1 in, Center Hole Dia. 1 in, Series RW, Includes Saddle
