Shop All Swing Cylinders
Enerpac

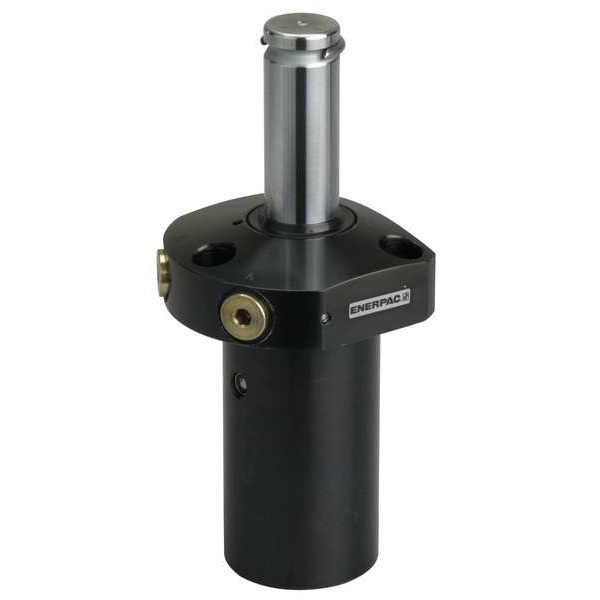

Swing Cylinder, Upper Flange, 2600 lb

product price: $835.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Double Acting
  • Clamping Force 2,600 lb
  • Total Stroke 1.1 in
  • Clamping Stroke 0.5 in
See all product information

Product Information

Dimensions

Outside Dia. 1.88 in
Extended Height 6.75 in
Mounting Hole Dia. 0.347 in
Min. Hole Depth 0.88 in
Port Size #4 SAE
Bolt Size 5/16"-24

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 2,600 lb, Total Stroke 1.1 in, Effective Area Clamped 0.63 sq in, Clamping Stroke 0.5 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 1.23 sq in, Oil Capacity Clamped 0.7 cu in, Oil Capacity Unclamped 1.4 cu in, Max. Oil Flow 100 cu in/min, Pressure Range 500 to 5000 psi
