  11. Swing Cylinder, Threaded, 1100 lb.
Shop All Swing Cylinders
Enerpac

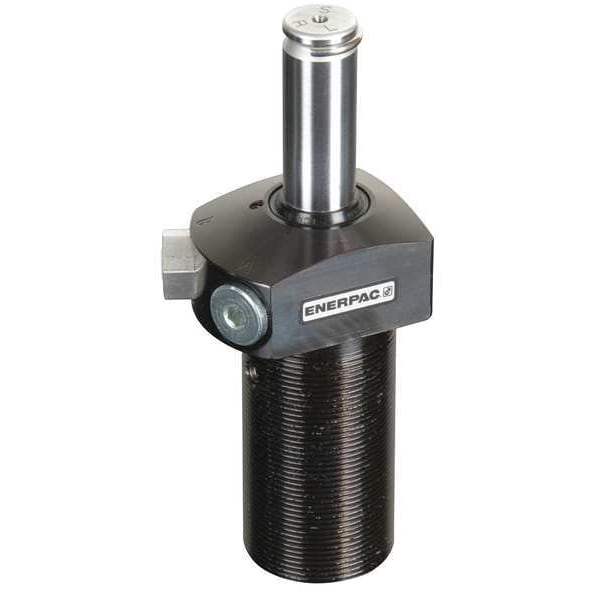

Swing Cylinder, Threaded, 1100 lb.

product price: $518.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Single Acting
  • Clamping Force 1,100 lb
  • Total Stroke 0.89 in
  • Clamping Stroke 0.39 in
See all product information

Product Information

Dimensions

Min. Hole Depth 0.65 in
Mounting Hole Dia. 1.38 in
Port Size 0.4375-20 UNF-2B
Outside Dia. 1.88 in
Extended Height 5.33 in
Bolt Size 1-3/8"-18

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Single Acting, Turns Right, Clamping Force 1,100 lb, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series ST, Swing Angle 90 Degrees , Port Size 0.4375-20 UNF-2B, Effective Area Unclamped 0.28 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.25 cu in, Max. Oil Flow 25 cu in/min
